README

A visual document editor for Filament PHP. Arrange text, images, drawings and tables on a canvas, edit their attributes with native Filament forms, and build your own elements with a PHP class and an Alpine Blade view.

Features

Visual editing — Drag, resize and rotate elements, zoom and pan, align with snapping guides, and manage layer order.
Rich text — Edit text in the attributes panel or directly on the canvas, preserving its formatting.
Native Filament forms — Define fields, defaults and validation in the element's form() method.
Reactive views — Alpine bindings update each element locally as its values change.
Custom elements — Generate a class and view with make:canvas-element and register them in your application.
Eloquent persistence — Attach a composition to an existing model through a polymorphic relation, with revision checks when saving.
Media Library integration — Select and upload images through Spatie Media Library, including authenticated access to private files.
Shared output — Reuse the element views and page template for the editor preview and standalone HTML output.

Installation

Requires PHP 8.2+, Laravel 12 or 13, Filament 5 and Livewire 4. Use a PHP version supported by your Laravel version.

composer require eduardoribeirodev/filament-canvas

If your application does not have Spatie Media Library's media table, publish its migration:

php artisan vendor:publish --provider="Spatie\MediaLibrary\MediaLibraryServiceProvider" --tag="medialibrary-migrations"

Run the migrations and publish Filament assets:

php artisan migrate
php artisan filament:assets

use EduardoRibeiroDev\FilamentCanvas\CanvasPlugin;
use Filament\Panel;

public function panel(Panel $panel): Panel
{
    return $panel
        // Your panel configuration...
        ->plugin(CanvasPlugin::make());
}

The service provider and Artisan command are discovered automatically. The package creates the canvas_elements table; your application supplies the document model and its table.

Configuration

Publish the configuration file:

php artisan vendor:publish --tag=filament-canvas-config

Defaults in config/filament-canvas.php:

return [
    'elements' => [],
    'width' => 1920,
    'height' => 1080,
    'min_zoom' => 0.25,
    'max_zoom' => 3,
    'media_disk' => 'public',
    'library_collection' => 'library',
    'file_roots' => [],
];

Option	Purpose
`elements`	Custom element classes added to the built-in registry, available to editors and model saves.
`width`, `height`	Default canvas dimensions in points. A model can override `canvasSize()`.
`min_zoom`	Minimum editor zoom as a scale (default `0.25`, or 25%).
`max_zoom`	Maximum editor zoom as a scale (default `3`, or 300%).
`media_disk`	Default disk for uploads.
`library_collection`	Default Spatie Media Library collection for uploads.
`file_roots`	Additional local directories allowed by the package's file resolver.

Set min_zoom and max_zoom in config/filament-canvas.php to change the slider, wheel/pinch gestures and fit-to-screen limits. For example, 0.1 and 5 allow 10%–500%. Both must be positive, with the maximum greater than the minimum. Custom editor views must pass these values as the minZoom and maxZoom options to canvas(...), as the bundled editor does.

For the public disk, run php artisan storage:link. You can publish the package views with php artisan vendor:publish --tag=filament-canvas-views if you need to customize the editor interface.

Core Components

Document Model

Implement CanvasOwner and use HasCanvas on the model that owns the composition. Add Spatie's HasMedia and InteractsWithMedia to support uploads to that document:

namespace App\Models;

use EduardoRibeiroDev\FilamentCanvas\Contracts\CanvasOwner;
use EduardoRibeiroDev\FilamentCanvas\Models\Concerns\HasCanvas;
use Illuminate\Database\Eloquent\Model;
use Spatie\MediaLibrary\HasMedia;
use Spatie\MediaLibrary\InteractsWithMedia;

class Document extends Model implements CanvasOwner, HasMedia
{
    use HasCanvas;
    use InteractsWithMedia;

    public function canvasSize(): array
    {
        return [841.89, 595.28]; // A4 landscape, in points.
    }

    public function registerMediaCollections(): void
    {
        $this->addMediaCollection('library')->useDisk('public');
    }
}

HasCanvas supplies the canvasElements() relation and the public canvas API. Elements are stored separately from your document's other attributes.

$canvas = $record->getCanvas();

$result = $record->saveCanvas(
    $blocks,
    expectedRevision: $canvas->revision,
);

$html = $record->renderCanvas();

getCanvas() returns a CanvasDocument containing blocks, width, height, revision and metadata. saveCanvas() returns the saved blocks and their new revision. The expected revision is required: stale writes are rejected without changing the document. Both methods accept user: $user for jobs or other explicit access contexts. Loading checks view; saving checks update and the model's editing restrictions.

Define shared composition settings on the model so that the editor and standalone output use the same configuration:

public function canvasTemplate(): string
{
    return 'canvas.document';
}

public function canvasElementsAvailable(): array
{
    return [
        \EduardoRibeiroDev\FilamentCanvas\Elements\TextElement::class,
        \EduardoRibeiroDev\FilamentCanvas\Elements\ImageElement::class,
    ];
}

The default implementations return null to inherit existing configuration. Model settings take precedence over panel defaults; explicit page, schema or render overrides take precedence over model settings. Configure custom elements on the model to make them available to editor saves and background jobs.

Define the document's view and update policy methods. The editor checks update access when opening and saving, and view access when loading. Override assertCanvasEditable(): void to enforce domain restrictions such as preventing changes to published documents; throw an exception when editing must be rejected.

Resource Editor Page

Create a page for your existing Filament resource:

namespace App\Filament\Resources\Documents\Pages;

use App\Filament\Resources\Documents\DocumentResource;
use EduardoRibeiroDev\FilamentCanvas\Pages\EditCanvas;

class EditDocumentCanvas extends EditCanvas
{
    protected static string $resource = DocumentResource::class;
}

public static function getPages(): array
{
    return [
        'index' => Pages\ListDocuments::route('/'),
        'create' => Pages\CreateDocument::route('/create'),
        'edit' => Pages\EditDocument::route('/{record}/edit'),
        'canvas' => Pages\EditDocumentCanvas::route('/{record}/canvas'),
    ];
}

Link to it with DocumentResource::getUrl('canvas', ['record' => $record]). The page gets the model from its resource and uses that model's class name as the document type by default.

Embedded Editor

Use the Canvas schema component to place the editor inside an existing resource page or schema:

use App\Models\Document;
use EduardoRibeiroDev\FilamentCanvas\Schemas\Components\Canvas;

Canvas::make()
    ->record(fn (Document $record) => $record)
    ->columnSpanFull();

Use an existing, saved record. The canvas has its own Save composition action and persists its elements independently of the surrounding form.

Canvas Elements

Built-in Elements

Class	Type	Includes
`TitleElement`	`title`	Rich text with heading defaults and inline editing.
`TextElement`	`text`	Rich text, font size, colors, spacing, columns and links.
`ImageElement`	`asset`	Media selection, cropping, image fit, opacity and flipping.
`DrawingElement`	`drawing`	Click to place points, drag points, close paths, edit stroke and fill.
`LineElement`	`line`	Start/end coordinates and solid, dashed or dotted strokes.
`RectangleElement`	`rectangle`	Rectangle with stroke and optional fill.
`EllipseElement`	`ellipse`	Ellipse with stroke and optional fill.
`TriangleElement`	`triangle`	Triangle with stroke and optional fill.
`ArrowElement`	`arrow`	Arrow with stroke and optional fill.

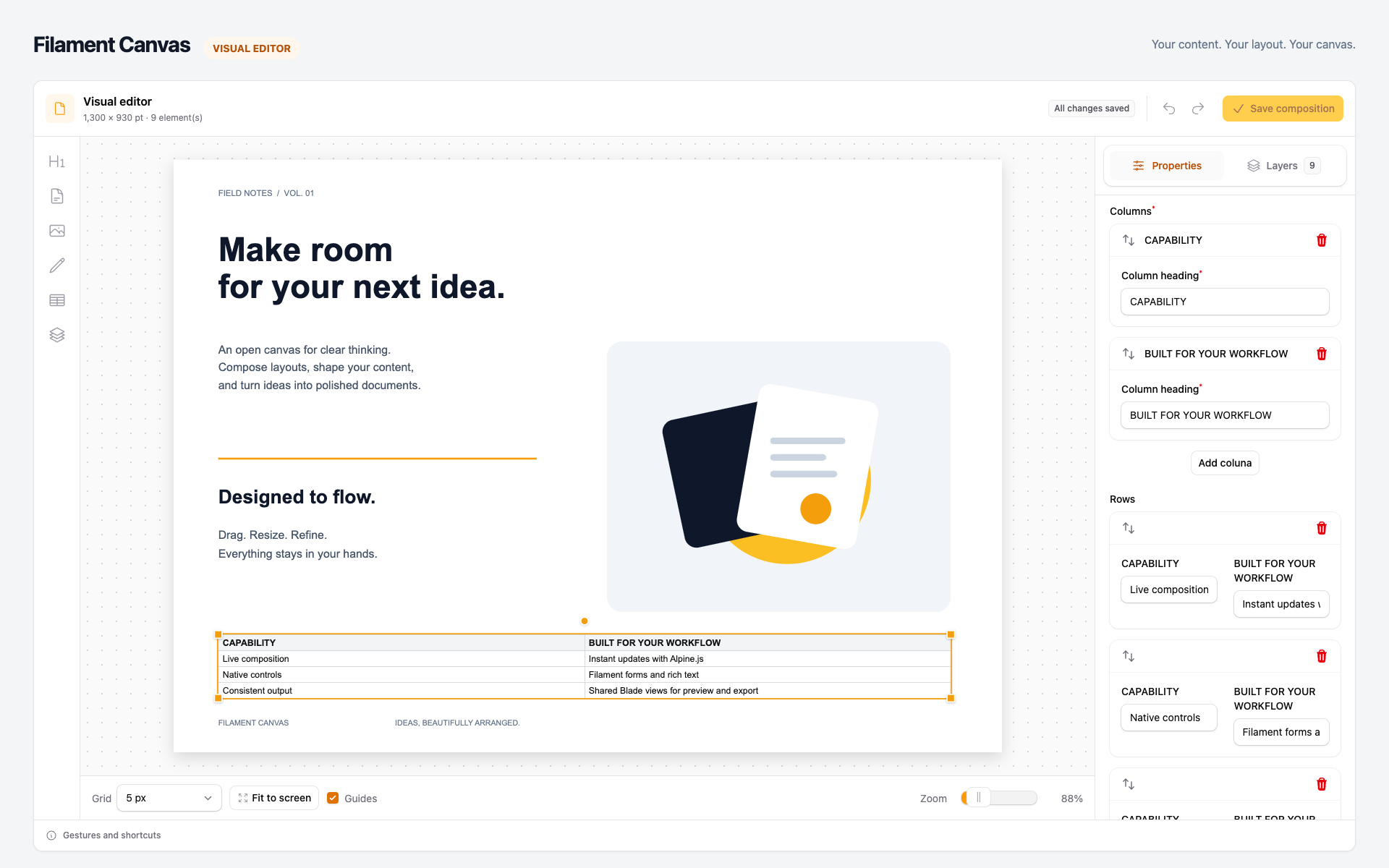

`DataTableElement`	`data-table`	Editable column headings and rows through native repeaters.

These classes live in EduardoRibeiroDev\FilamentCanvas\Elements and are available by default.

Drawing with Points

Select Drawing, then click the canvas to add points. Click the first point to close the figure, or press Enter to finish an open path. Esc cancels. Double-click an existing drawing to edit its points; drag a point to move it, then press Enter to finish or Esc to discard the edits. The attributes panel also exposes the ordered points, closed/open state, stroke and fill.

Points are saved as drawing.points, an array of {x, y} percentages relative to the element frame. The shared SVG view scales with the element and renders in standalone HTML/PDF. Line and shape styling remains under the same drawing property.

Creating Custom Elements

Generate an element in your application:

php artisan make:canvas-element NoticeElement

The command asks Which built-in element would you like to extend? Choose None (generic element), Title, Text, Image, Drawing, Line, Rectangle, Ellipse, Triangle, Arrow or Data table.

The command creates two files:

app/Canvas/Elements/NoticeElement.php
resources/views/canvas/elements/notice.blade.php

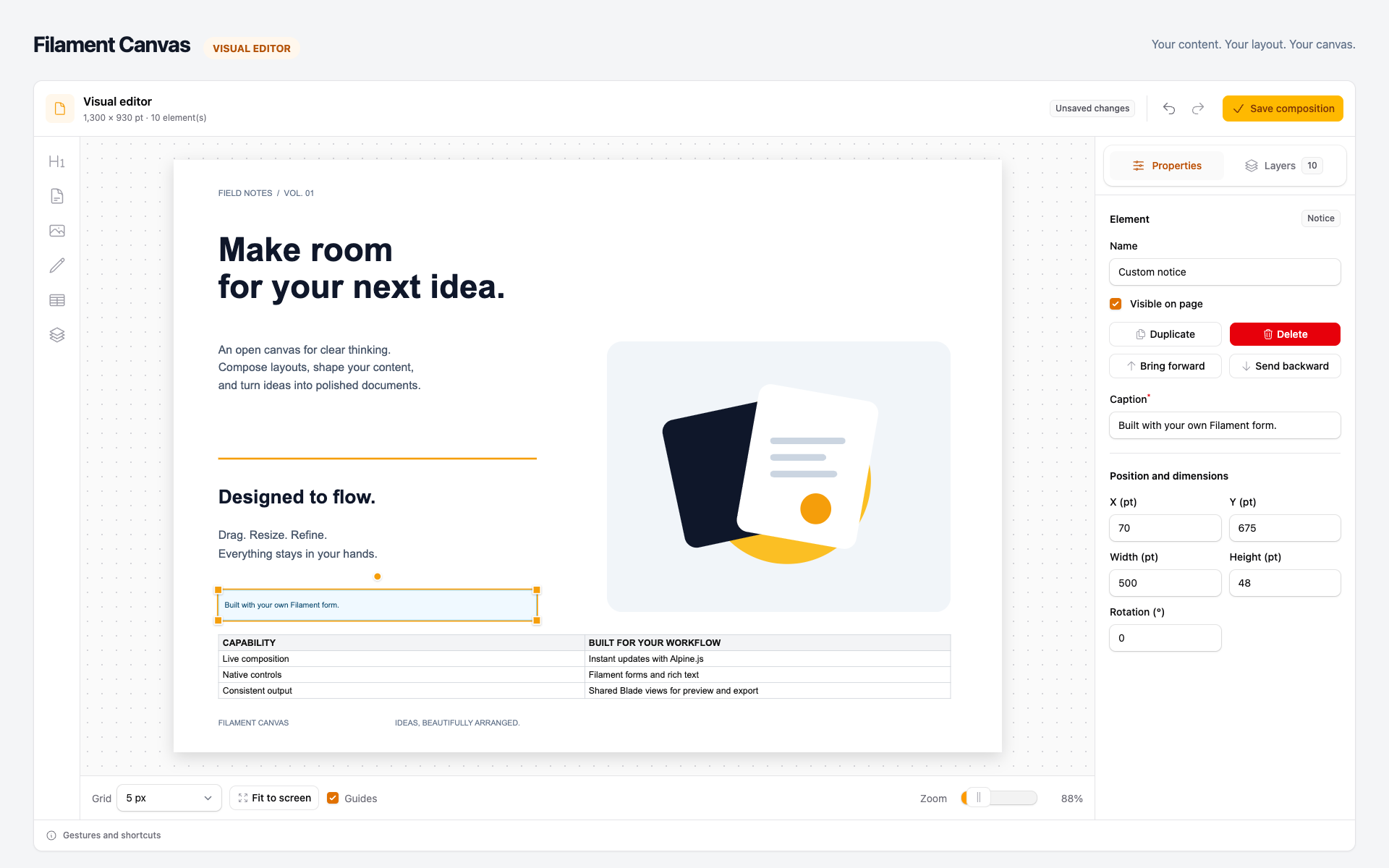

Choosing None (generic element) generates a working field and its default value:

namespace App\Canvas\Elements;

use EduardoRibeiroDev\FilamentCanvas\Elements\CanvasElement;
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Schema;

class Notice extends CanvasElement
{
    public function type(): string
    {
        return 'notice';
    }

    public function getLabel(): string
    {
        return 'Notice';
    }

    public function form(Schema $schema): Schema
    {
        return $schema->components([
            TextInput::make('caption')
                ->required()
                ->rules(['string'])
                ->maxLength(255)
                ->default('New notice'),
        ]);
    }

    public function view(): string
    {
        return 'canvas.elements.notice';
    }
}

The generated Blade view contains a styled container and x-text="data.caption". You can replace its layout while keeping the same binding:

<div style="width:100%;height:100%;padding:12px;box-sizing:border-box;font:16px/1.4 Arial,sans-serif">
    <span x-text="data.caption"></span>
</div>

The base class provides an icon. Register the class using one of the options below, then add it from the editor toolbar.

Inheriting a built-in element:

Choosing a built-in type preserves its form, icon, media settings and editing tools. The generated class overrides only its identity and view. For example, choosing Text for QuoteElement generates:

namespace App\Canvas\Elements;

use EduardoRibeiroDev\FilamentCanvas\Elements\TextElement;

class QuoteElement extends TextElement
{
    public function type(): string
    {
        return 'quote';
    }

    public function getLabel(): string
    {
        return 'Quote';
    }

    public function view(): string
    {
        return 'canvas.elements.quote';
    }
}

Its generated view reuses the built-in markup, which you can customize:

@include('filament-canvas::elements.text')

The inherited form and inline rich text editor work immediately. To choose the parent without a prompt:

php artisan make:canvas-element QuoteElement --extends=text

--extends accepts none, title, text, image, drawing, line, rectangle, ellipse, triangle, arrow and data-table. With --no-interaction and no --extends option, the command generates a generic element.

Nested elements:

php artisan make:canvas-element Marketing/PromoCardElement

This creates App\Canvas\Elements\Marketing\PromoCardElement, with type marketing-promo-card and view canvas.elements.marketing.promo-card. The final Element suffix is omitted from the type and view name; the PHP class name keeps the suffix and uses PascalCase. The command also accepts fully qualified names within your application's Canvas\Elements namespace and respects a custom application namespace.

Existing class or view files stop generation before either file is changed. To deliberately replace both files:

php artisan make:canvas-element NoticeElement --force

The command prints the registration instruction; it does not edit your configuration or panel provider.

Registering Elements

For availability throughout your application, add the class to the published configuration:

// config/filament-canvas.php
'elements' => [
    App\Canvas\Elements\NoticeElement::class,
],

You can also add an element at panel level:

CanvasPlugin::make()
    ->extraElements([\App\Canvas\Elements\NoticeElement::class]);

To configure one resource editor page:

protected static ?array $canvasExtraElements = [NoticeElement::class];

Or an embedded editor:

Canvas::make()
    ->record(fn (Document $record) => $record)
    ->extraElements([NoticeElement::class]);

Use elements([...]), or the page's $canvasElements, to replace the available classes instead of adding to the defaults. Give each element a unique, stable type(), since saved compositions use it to identify the class.

Declare custom classes in the owner's canvasElementsAvailable() list. Model saves and background jobs resolve types from that same list outside the editor. Return null to use the package defaults and global element configuration.

Forms and Reactive Views

A field path is relative to the selected element's properties. TextInput::make('caption') reads and writes data.properties.caption on the stored block. In the element view, that value is available directly as the Alpine expression data.caption.

The editor loads the selected element's form() in the attributes panel.
Field changes update that element's local state.
Alpine bindings update its view using that state.
Save composition validates the native form rules and persists the composition.

No PHP variables need to be passed to an element view. Blade supplies the reusable markup; Alpine supplies the changing values. Each element instance gets its own data scope. Document metadata supplied by canvasMetadata() is available in that scope in both the editor and standalone output. Element properties take precedence. Metadata is transient and is not saved in the element properties.

Keep presentation calculations in the element's Blade view using CSS, Alpine getters and x-data. The same view runs in the editor and exported document, so it needs no separate display adapter. Native Repeaters can manage item lists in form().

Custom text or image views can mark their displayed content with data-canvas-text or data-canvas-image. This lets the package's inline text and crop tools read the content shown by the view.

<span x-text="data.caption"></span>

<div :style="{ color: data.color, fontSize: data.font_size + 'px' }">
    <span x-text="data.caption"></span>
</div>

<template x-for="(item, index) in (data.items ?? [])" :key="index">
    <span x-text="item.label"></span>
</template>

Declare color, font_size and items in form() before using them in your own element. Defaults initialize new elements. Use native field rules such as required(), maxLength(), numeric() and rules() for validation.

Use x-text for plain strings. Use x-html only with sanitized HTML, such as the built-in text element's prepared rich text. Avoid {{ $caption }} or @foreach for changing element values, since those run when the template is compiled.

Visual updates do not require a rendering request for each change. Selecting an element can load its form, fields with server-dependent behavior can make Livewire requests, and saving or uploading still uses the server.

Extending Built-in Elements

Extend a built-in class when your element needs its existing behavior. For example, a custom text element inherits rich text and double-click inline editing:

use EduardoRibeiroDev\FilamentCanvas\Elements\TextElement;

class QuoteElement extends TextElement
{
    public function type(): string
    {
        return 'quote';
    }

    public function getLabel(): string
    {
        return 'Quote';
    }
}

You can override view() or extend form() to add fields. Extending CanvasElement gives you a generic element; using a text field alone does not enable inline rich text editing. ImageElement and DrawingElement similarly provide their respective editing tools through inheritance.

User Interactions

Use the toolbar to insert an element, then drag it or use the resize and rotation handles.
Edit content and appearance in Properties. Position and dimensions are managed separately from element properties.

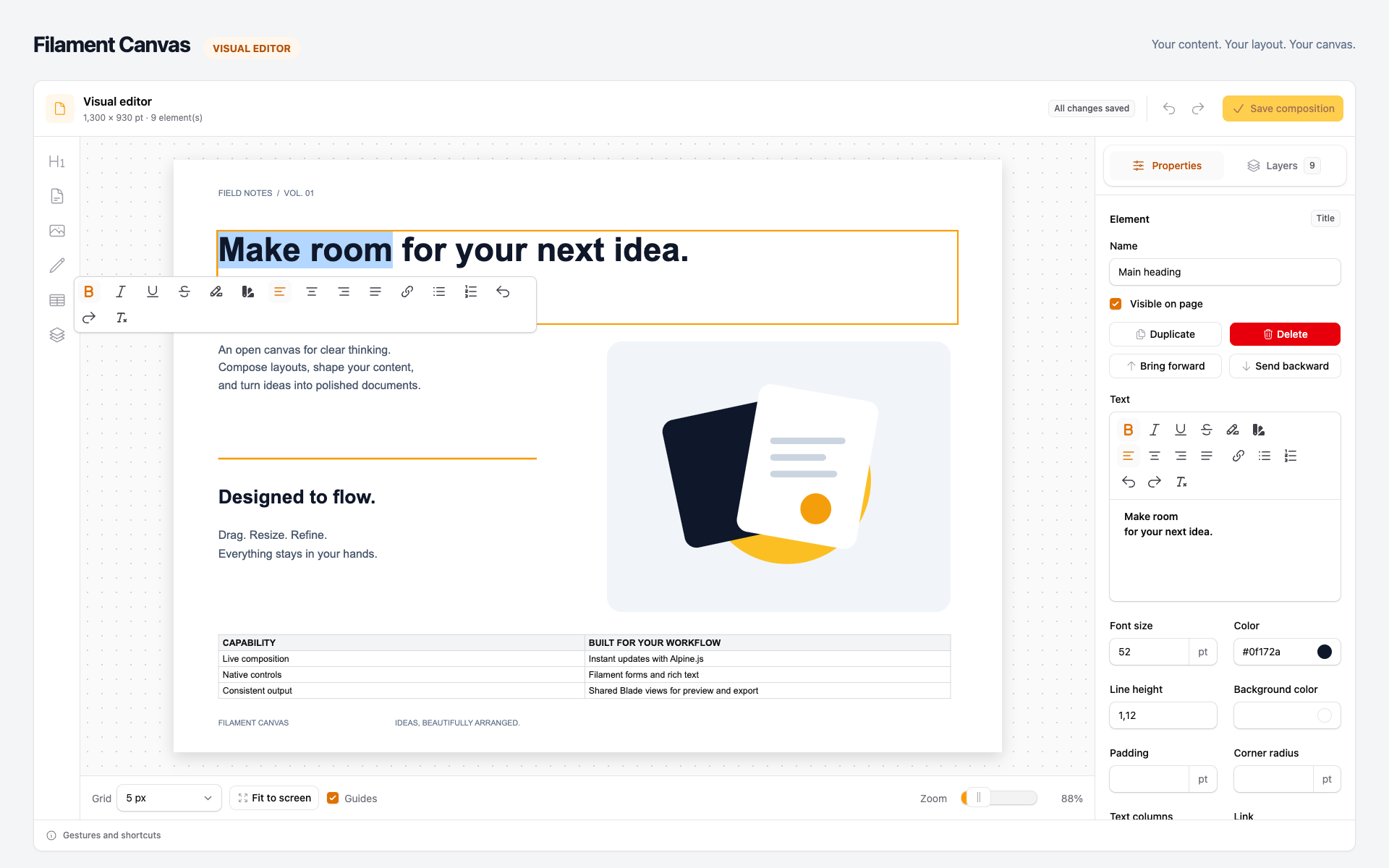

Double-click a text element to edit it in place. Use the floating toolbar for formatting.

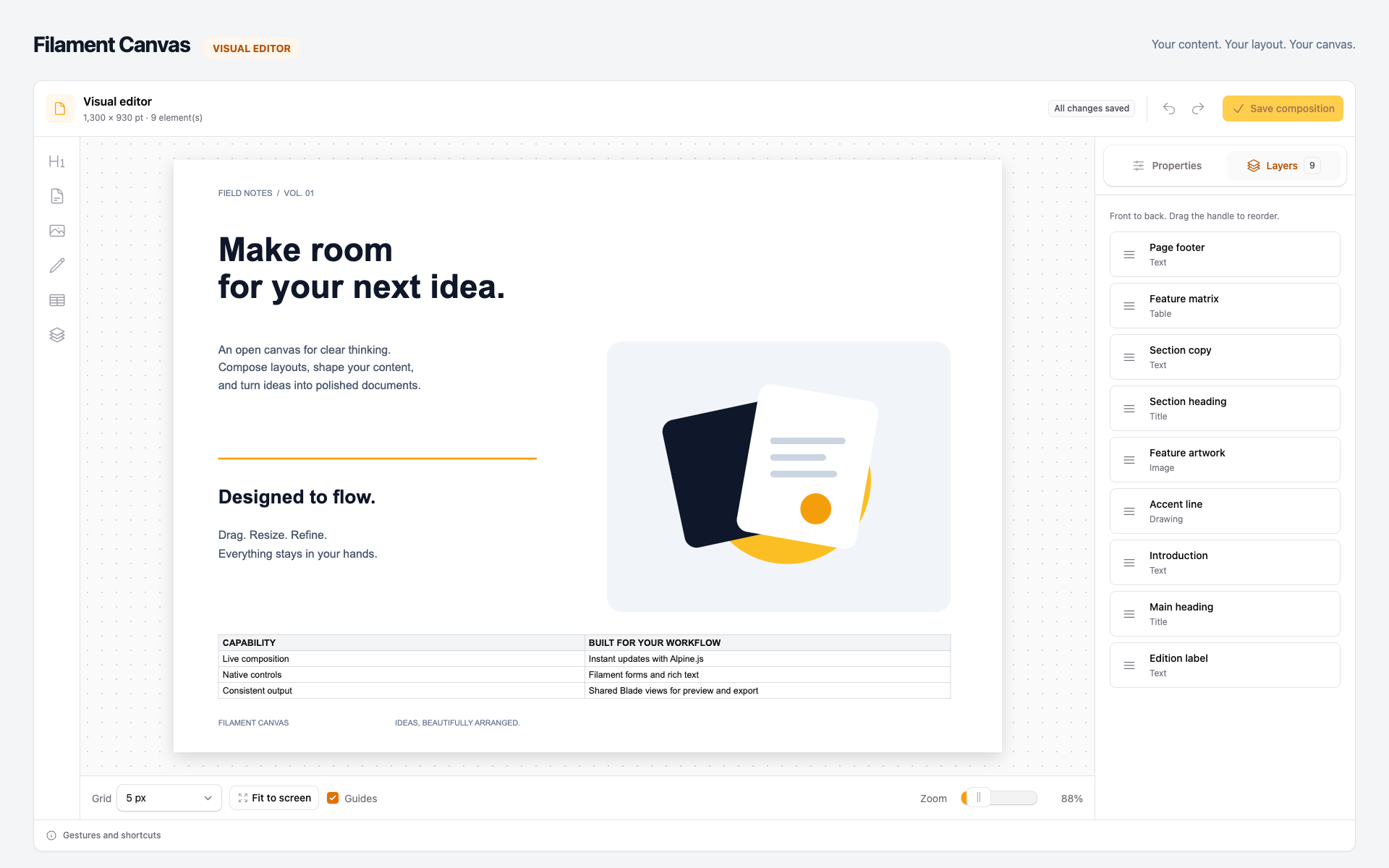

Open Layers to select and reorder elements. Visibility and duplication are available in the attributes panel.
Use the grid, snapping controls, zoom and Fit to screen to work at different scales.
Use the undo and redo buttons, or Ctrl/Cmd+Z and Ctrl/Cmd+Shift+Z while the canvas has focus.
Click Save composition to persist changes. Unsaved changes remain local to the editor.

Advanced Features

Media Collections

ImageElement already declares an image collection with image_id as its reference field. Custom elements can declare collections through mediaCollections():

public function mediaCollections(): array
{
    return [
        'image' => [
            'label' => 'Image',
            'accepted_mime_types' => ['image/png', 'image/jpeg', 'image/webp'],
            'max_files' => 1,
            'max_size' => 10240, // Kilobytes.
            'reference_field' => 'image_id',
        ],
    ];
}

The media library validates file access and references before saving. Uploads use the owning document by default, so it must implement Spatie's HasMedia contract. Private media uses signed, authenticated file URLs.

Collections can customize disk, query, authorize, upload_owner and upload_collection. Use these when media belongs to a different model or needs application-specific access rules. The package prepares browser or output URLs from the saved media references; element views bind to the resulting data.

Page Templates and Output

Select the page layout on the plugin, editor page or embedded editor:

CanvasPlugin::make()->template('canvas.page');

protected static ?string $canvasTemplate = 'canvas.page';

Canvas::make()
    ->record(fn (Document $record) => $record)
    ->template('canvas.page');

A page template receives the positioned $blocks, document $data, $width, $height and $preview. Start with the default page template, preserving its positioning and element styles. To reuse it from your own view:

{{-- resources/views/canvas/page.blade.php --}}
@include('filament-canvas::templates.blank')

Copy the default template's markup and styles into your view when you want to change the layout. Page templates use PHP for document-level layout; element views use Alpine for their changing values. An owner can implement Contracts\CanvasRenderData to supply additional page data through canvasRenderData(CanvasDocument $document, EditorContext $context): array.

For standalone output, models using HasCanvas can render their saved canvas directly:

$html = $record->renderCanvas();

// Override the page template for this render.
$html = $record->renderCanvas('canvas.page');

// Use an explicit user, for example in a queued job.
$html = $record->renderCanvas(user: $user);

The method loads the saved document and checks the view and update policies. It uses the current authenticated user unless one is supplied. Model template and element settings apply both within and outside a Filament panel. Unspecified settings inherit panel or package defaults. Templates and elements configured only on an editor page or schema component are not automatically inherited. The model must already be saved. The older store and context APIs remain available for custom storage integrations; ordinary Eloquent usage goes through the model methods.

Standalone HTML includes Alpine and the prepared element values. If a Chromium-based exporter prints the HTML, wait until window.canvasReady === true; inspect window.canvasError if preparation fails. PDF generation itself belongs to your application.

Translations

The editor follows Laravel's current locale. Included locales are de, en, es, fr, it, pt_BR and pt_PT, covering element forms, toolbar labels, media controls, help text and editor messages.

app()->setLocale('pt_BR');

To customize the translations, publish the language files:

php artisan vendor:publish --tag=filament-canvas-translations

Edit lang/vendor/filament-canvas/{locale}/canvas.php in your application. Custom elements should translate their own labels using Laravel's __() helper. Saved user content and custom collection labels are preserved as supplied by the application.

Custom Storage

Implement Contracts\DocumentStore when documents live outside the default Eloquent relation. The contract defines authorize(), load() and save(); saving must compare the expected revision and persist changes atomically.

CanvasPlugin::make()
    ->documentStore('presentation', PresentationStore::class);

Then use Canvas::make()->document('presentation', $id) in a schema. See JsonDocumentStore for a file-based example that uses a lock and revision checking. It requires an application-defined canvas-document authorization gate.

Data Structure

A composition is an ordered array of blocks. For the generated Notice element:

[
    'type' => 'notice',
    'data' => [
        'name' => 'Notice',
        'x_pt' => 20,
        'y_pt' => 30,
        'width_pt' => 240,
        'height_pt' => 50,
        'rotation_deg' => 0,
        'visible' => true,
        'properties' => [
            'caption' => 'New notice',
        ],
    ],
]

type identifies the registered element class.
data contains its name, geometry, visibility and optional media references.
data.properties contains the values declared by its form.
Array order defines the layer order. Persistence adds the element ID and layer index.

Geometry uses points, displayed as one CSS pixel per point before editor zoom. Image references such as image_id belong to the outer data envelope. Text elements store the native RichEditor document in properties.rich_text; their HTML and plain text are derived output values.

The view's Alpine data scope contains the flattened properties plus prepared values such as type, geometry and media. It is the display state for one element, rather than the stored block envelope.

Method Reference

Element Methods

Method	Purpose
`type(): string`	Stable identifier used in saved blocks. Required.
`getLabel()`	Display name in the toolbar and attributes panel. Required.
`view(): string`	Name of the reactive Blade view. Required.
`form(Schema $schema): Schema`	Native attribute fields, defaults and validation. Empty by default.
`getIcon()`	Toolbar icon. The base class provides a default.
`showInToolbar(): bool`	Whether users can insert the type from the toolbar. Defaults to `true`.
`mediaCollections(): array`	Media policies and reference fields. Empty by default.
`normalize(array $properties): array`	Optional derivation of stored output values. Returns properties unchanged by default.

A typical custom element needs only type(), getLabel(), form() and view().

Editor Configuration

Scope	Add elements	Replace elements	Page layout	Editor interface
Panel plugin	`extraElements([...])`	`elements([...])`	`template('view')`	`editorView('view')`
Resource page	`$canvasExtraElements`	`$canvasElements`	`$canvasTemplate`	`$canvasEditorView`
Schema component	`extraElements([...])`	`elements([...])`	`template('view')`	`editorView('view')`

Development

composer install
npm ci
npm run build
npm test
vendor/bin/phpunit

Vite builds JavaScript and editor CSS to resources/dist, preserving canvas.js as an ES module and document.js as a standalone IIFE bundle. Run php artisan filament:assets in the consuming application after rebuilding package assets.

Documentation screenshots are real captures of the editor using isolated sample content. The custom-element screenshot uses the files generated by make:canvas-element NoticeElement.

License

The MIT License (MIT). See LICENSE for details.

Credits

Built for Filament
Created by Eduardo Ribeiro

Support

For issues, questions, or contributions, please visit the GitHub repository. Don't forget, Jesus loves you ❤️.

Toolbar groups

Mix groups and standalone elements in canvasElementsAvailable() or the plugin element list. Groups only organize the toolbar; saved element types remain unchanged. Labels are optional, empty groups are omitted, and groups cannot be nested.

use EduardoRibeiroDev\FilamentCanvas\Elements\ElementGroup;

return [
    ElementGroup::make([TextElement::class, ImageElement::class])->label('Content'),
    ElementGroup::make([LineElement::class, RectangleElement::class])->label('Shapes'),
    DataTableElement::class,
];

Resolving document elements

canvasElementsAvailable() supplies the document configuration. Return null to use the package defaults. availableCanvasElements() returns the effective plain list, including toolbar groups. To resolve a saved stable type on a document:

$element = $page->resolveCanvasElement('text');
$label = $element->getLabel();
$icon = $element->getIcon();

The resolver walks the allowed element list and compares type(). Groups only organize the toolbar. The editor, validation, persistence and PDF renderer use the same allowed list. Unknown types are rejected; arbitrary PHP class names are never instantiated from saved or submitted types. Support\CanvasElements contains shared list operations; there are no registry or presentation objects to configure or synchronize.

eduardoribeirodev / filament-canvas

Package info

Security

Statistics
