laravel-soar

SQL optimizer and rewriter for laravel. - laravel 的 SQL 优化器和重写器。

简体中文 | ENGLISH

Feature

Supports heuristic rule suggestions, index rule suggestions, and EXPLAIN information interpretation
Support calling query builder Mixin methods for convenient dumping of rule suggestions
Automatically monitor output rule suggestions to configured outputs

Requirement

PHP >= 8.0

Installation

composer require guanguans/laravel-soar --dev --ansi -v

Configuration

Publish files(optional)

php artisan vendor:publish --provider="Guanguans\\LaravelSoar\\SoarServiceProvider"

⚠️ When running in a unix OS non-cli environment, may throw Fatal error: ...Exit Code: 2(Misuse of shell builtins)

# Fatal error: Uncaught Guanguans\SoarPHP\Exceptions\ProcessFailedException: The command "'/Users/yaozm/Documents/develop/soar-php/bin/soar.darwin-amd64' '-report-type=json' '-query=select * from users;'" failed. Exit Code: 2(Misuse of shell builtins) Working directory: /Users/yaozm/Documents/develop/soar-php Output: ================ Error Output: ================ panic: runtime error: invalid memory address or nil pointer dereference [signal SIGSEGV: segmentation violation code=0x1 addr=0x0 pc=0x1938665] goroutine 1 [running]: github.com/pingcap/tidb/util/memory.MemTotalNormal() pkg/mod/github.com/pingcap/tidb@v1.1.0-beta.0.20210601085537-5d7c852770eb/util/memory/meminfo.go:41 +0x65 github.com/pingcap/tidb/util/memory.init.0() pkg/mod/github.com/pingcap/tidb@v1.1.0-beta.0.20210601085537-5d7c852770eb/util/memory/meminfo.go:134 +0x175 in /Users/yaozm/Documents/develop/soar-php/src/Concerns/WithRunable.php:36 Stack trace: #0 /Users/yaozm/Documents/develop/soar-php/test.php(163): Guanguans\SoarPHP\Soar->run() #1 /User in /Users/yaozm/Documents/develop/soar-php/src/Concerns/WithRunable.php on line 36
SOAR_SUDO_PASSWORD='your sudo password' # Set a sudo password to run the soar command with sudo to avoid the above errors.

Usage

Enable to automatically output SQL optimization suggestions

details

Configure `SOAR_ENABLED`

SOAR_ENABLED=true

Or configure `soar.enabled`

<?php

return [
    'enabled' => (bool) env('SOAR_ENABLED', env('APP_ENV') === 'local'),

    // ...
];

Install and configure outputs(optional)

Clockwork

Install itsgoingd/clockwork
Configure soar.outputs.Outputs\ClockworkOutput::class

Console

Configure soar.outputs.Outputs\ConsoleOutput::class

DebugBar

Install barryvdh/laravel-debugbar
Configure soar.outputs.Outputs\DebugBarOutput::class

Dump

Configure soar.outputs.Outputs\DumpOutput::class

Json

Configure soar.outputs.Outputs\JsonOutput::class

{
    "message": "ok",
    "soar_scores": [
        {
            "Summary": "[☆☆☆☆☆|0分|9.17ms|select * from `users` where `name` = 'soar' group by `name` having `created_at` > '2023-06-05 03:19:30']",
            "Basic": {
                "Sample": "select * from `users` where `name` = 'soar' group by `name` having `created_at` > '2023-06-05 03:19:30'",
                "Score": 0,
                "Star": "☆☆☆☆☆",
                "Time": "9.17ms",
                "Connection": "mysql",
                "Driver": "mysql",
                "Tables": [
                    "`laravel`.`users`"
                ]
            },
            "HeuristicRules": [
                {
                    "Item": "CLA.008",
                    "Severity": "L2",
                    "Summary": "请为 GROUP BY 显示添加 ORDER BY 条件",
                    "Content": "默认 MySQL 会对 'GROUP BY col1, col2, ...' 请求按如下顺序排序 'ORDER BY col1, col2, ...'。如果 GROUP BY 语句不指定 ORDER BY 条件会导致无谓的排序产生，如果不需要排序建议添加 'ORDER BY NULL'。",
                    "Case": "select c1,c2,c3 from t1 where c1='foo' group by c2",
                    "Position": 0
                },
                {
                    "Item": "CLA.013",
                    "Severity": "L3",
                    "Summary": "不建议使用 HAVING 子句",
                    "Content": "将查询的 HAVING 子句改写为 WHERE 中的查询条件，可以在查询处理期间使用索引。",
                    "Case": "SELECT s.c_id,count(s.c_id) FROM s where c = test GROUP BY s.c_id HAVING s.c_id <> '1660' AND s.c_id <> '2' order by s.c_id",
                    "Position": 0
                },
                {
                    "Item": "COL.001",
                    "Severity": "L1",
                    "Summary": "不建议使用 SELECT * 类型查询",
                    "Content": "当表结构变更时，使用 * 通配符选择所有列将导致查询的含义和行为会发生更改，可能导致查询返回更多的数据。",
                    "Case": "select * from tbl where id=1",
                    "Position": 0
                },
                {
                    "Item": "ERR.002",
                    "Severity": "L8",
                    "Summary": "MySQL execute failed",
                    "Content": "Expression #1 of SELECT list is not in GROUP BY clause and contains nonaggregated column 'optimizer_230605111934_bbpxve0adj2dgrcs.users.id' which is not functionally dependent on columns in GROUP BY clause; this is incompatible with sql_mode=only_full_group_by",
                    "Case": "",
                    "Position": 0
                },
                {
                    "Item": "GRP.001",
                    "Severity": "L2",
                    "Summary": "不建议对等值查询列使用 GROUP BY",
                    "Content": "GROUP BY 中的列在前面的 WHERE 条件中使用了等值查询，对这样的列进行 GROUP BY 意义不大。",
                    "Case": "select film_id, title from film where release_year='2006' group by release_year",
                    "Position": 0
                },
                {
                    "Item": "RES.001",
                    "Severity": "L4",
                    "Summary": "非确定性的 GROUP BY",
                    "Content": "SQL返回的列既不在聚合函数中也不是 GROUP BY 表达式的列中，因此这些值的结果将是非确定性的。如：select a, b, c from tbl where foo=\"bar\" group by a，该 SQL 返回的结果就是不确定的。",
                    "Case": "select c1,c2,c3 from t1 where c2='foo' group by c2",
                    "Position": 0
                }
            ],
            "IndexRules": [
                {
                    "Item": "IDX.001",
                    "Severity": "L2",
                    "Summary": "为laravel库的users表添加索引",
                    "Content": "为列name添加索引;为列created_at添加索引; 由于未开启数据采样，各列在索引中的顺序需要自行调整。",
                    "Case": "ALTER TABLE `laravel`.`users` add index `idx_name_created_at` (`name`(191),`created_at`) ;\n",
                    "Position": 0
                }
            ],
            "Explain": [],
            "Backtraces": [
                "#13 /routes/web.php:53",
                "#38 /Users/yaozm/Documents/develop/laravel-soar/src/Http/Middleware/OutputSoarScoreMiddleware.php:37",
                "#59 /public/index.php:55",
                "#60 /server.php:21"
            ]
        },
        {
            "Summary": "[★★★★☆|75分|205.25ms|CREATE TABLE `users` (\n  `id` bigint unsigned NOT NULL AUTO_INCREMENT,\n  `name` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `email` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `email_verified_at` timestamp NULL DEFAULT NULL,\n  `password` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `remember_token` varchar(100) COLLATE utf8mb4_unicode_ci DEFAULT NULL,\n  `created_at` timestamp NULL DEFAULT NULL,\n  `updated_at` timestamp NULL DEFAULT NULL,\n  PRIMARY KEY (`id`),\n  UNIQUE KEY `users_email_unique` (`email`)\n) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;]",
            "Basic": {
                "Sample": "CREATE TABLE `users` (\n  `id` bigint unsigned NOT NULL AUTO_INCREMENT,\n  `name` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `email` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `email_verified_at` timestamp NULL DEFAULT NULL,\n  `password` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL,\n  `remember_token` varchar(100) COLLATE utf8mb4_unicode_ci DEFAULT NULL,\n  `created_at` timestamp NULL DEFAULT NULL,\n  `updated_at` timestamp NULL DEFAULT NULL,\n  PRIMARY KEY (`id`),\n  UNIQUE KEY `users_email_unique` (`email`)\n) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;",
                "Score": 75,
                "Star": "★★★★☆",
                "Time": "205.25ms",
                "Connection": "mysql",
                "Driver": "mysql",
                "Tables": [
                    "`laravel`.`users`"
                ]
            },
            "HeuristicRules": [
                {
                    "Item": "CLA.011",
                    "Severity": "L1",
                    "Summary": "建议为表添加注释",
                    "Content": "为表添加注释能够使得表的意义更明确，从而为日后的维护带来极大的便利。",
                    "Case": "CREATE TABLE `test1` (`ID` bigint(20) NOT NULL AUTO_INCREMENT,`c1` varchar(128) DEFAULT NULL,PRIMARY KEY (`ID`)) ENGINE=InnoDB DEFAULT CHARSET=utf8",
                    "Position": 0
                },
                {
                    "Item": "COL.004",
                    "Severity": "L1",
                    "Summary": "请为列添加默认值",
                    "Content": "请为列添加默认值，如果是 ALTER 操作，请不要忘记将原字段的默认值写上。字段无默认值，当表较大时无法在线变更表结构。",
                    "Case": "CREATE TABLE tbl (col int) ENGINE=InnoDB;",
                    "Position": 0
                },
                {
                    "Item": "COL.005",
                    "Severity": "L1",
                    "Summary": "列未添加注释",
                    "Content": "建议对表中每个列添加注释，来明确每个列在表中的含义及作用。",
                    "Case": "CREATE TABLE tbl (col int) ENGINE=InnoDB;",
                    "Position": 0
                },
                {
                    "Item": "KWR.003",
                    "Severity": "L1",
                    "Summary": "不建议使用复数做列名或表名",
                    "Content": "表名应该仅仅表示表里面的实体内容，不应该表示实体数量，对应于 DO 类名也是单数形式，符合表达习惯。",
                    "Case": "CREATE TABLE tbl ( `books` int )",
                    "Position": 0
                },
                {
                    "Item": "SEC.002",
                    "Severity": "L0",
                    "Summary": "不使用明文存储密码",
                    "Content": "使用明文存储密码或者使用明文在网络上传递密码都是不安全的。如果攻击者能够截获您用来插入密码的SQL语句，他们就能直接读到密码。另外，将用户输入的字符串以明文的形式插入到纯SQL语句中，也会让攻击者发现它。如果您能够读取密码，黑客也可以。解决方案是使用单向哈希函数对原始密码进行加密编码。哈希是指将输入字符串转化成另一个新的、不可识别的字符串的函数。对密码加密表达式加点随机串来防御“字典攻击”。不要将明文密码输入到SQL查询语句中。在应用程序代码中计算哈希串，只在SQL查询中使用哈希串。",
                    "Case": "create table test(id int,name varchar(20) not null,password varchar(200)not null)",
                    "Position": 0
                },
                {
                    "Item": "STA.003",
                    "Severity": "L1",
                    "Summary": "索引起名不规范",
                    "Content": "建议普通二级索引以idx_为前缀，唯一索引以uk_为前缀。",
                    "Case": "select col from now where type!=0",
                    "Position": 0
                }
            ],
            "IndexRules": [],
            "Explain": [],
            "Backtraces": [
                "#9 /routes/web.php:22",
                "#34 /Users/yaozm/Documents/develop/laravel-soar/src/Http/Middleware/OutputSoarScoreMiddleware.php:37",
                "#55 /public/index.php:55",
                "#56 /server.php:21"
            ]
        },
        {
            "Summary": "[★★★★☆|80分|1.72ms|update `users` set `name` = 'name', `password` = 'password', `users`.`updated_at` = '2023-06-05 03:19:30']",
            "Basic": {
                "Sample": "update `users` set `name` = 'name', `password` = 'password', `users`.`updated_at` = '2023-06-05 03:19:30'",
                "Score": 80,
                "Star": "★★★★☆",
                "Time": "1.72ms",
                "Connection": "mysql",
                "Driver": "mysql",
                "Tables": [
                    "`laravel`.`users`"
                ]
            },
            "HeuristicRules": [
                {
                    "Item": "CLA.015",
                    "Severity": "L4",
                    "Summary": "UPDATE 未指定 WHERE 条件",
                    "Content": "UPDATE 不指定 WHERE 条件一般是致命的，请您三思后行",
                    "Case": "update tbl set col=1",
                    "Position": 0
                }
            ],
            "IndexRules": [],
            "Explain": [
                {
                    "Item": "EXP.000",
                    "Severity": "L0",
                    "Summary": "Explain信息",
                    "Content": [
                        "| id | select\\_type | table | partitions | type | possible_keys | key | key\\_len | ref | rows | filtered | scalability | Extra |",
                        "|---|---|---|---|---|---|---|---|---|---|---|---|---|",
                        "| 1  | UPDATE | *users* | NULL | index | NULL | PRIMARY | 8 | NULL | 1 | ☠️ **100.00%** | ☠️ **O(n)** | NULL |"
                    ],
                    "Case": [
                        "### Explain信息解读",
                        "#### Type信息解读",
                        "* **index**: 全表扫描, 只是扫描表的时候按照索引次序进行而不是行. 主要优点就是避免了排序, 但是开销仍然非常大."
                    ],
                    "Position": 0
                }
            ],
            "Backtraces": [
                "#10 /routes/web.php:48",
                "#35 /Users/yaozm/Documents/develop/laravel-soar/src/Http/Middleware/OutputSoarScoreMiddleware.php:37",
                "#56 /public/index.php:55",
                "#57 /server.php:21"
            ]
        },
        {
            "Summary": "[★★★★★|90分|940μs|delete from `users` where `name` = 'soar']",
            "Basic": {
                "Sample": "delete from `users` where `name` = 'soar'",
                "Score": 90,
                "Star": "★★★★★",
                "Time": "940μs",
                "Connection": "mysql",
                "Driver": "mysql",
                "Tables": [
                    "`laravel`.`users`"
                ]
            },
            "HeuristicRules": [
                {
                    "Item": "SEC.003",
                    "Severity": "L0",
                    "Summary": "使用DELETE/DROP/TRUNCATE等操作时注意备份",
                    "Content": "在执行高危操作之前对数据进行备份是十分有必要的。",
                    "Case": "delete from table where col = 'condition'",
                    "Position": 0
                }
            ],
            "IndexRules": [
                {
                    "Item": "IDX.001",
                    "Severity": "L2",
                    "Summary": "为laravel库的users表添加索引",
                    "Content": "为列name添加索引; 由于未开启数据采样，各列在索引中的顺序需要自行调整。",
                    "Case": "ALTER TABLE `laravel`.`users` add index `idx_name` (`name`(191)) ;\n",
                    "Position": 0
                }
            ],
            "Explain": [
                {
                    "Item": "EXP.000",
                    "Severity": "L0",
                    "Summary": "Explain信息",
                    "Content": [
                        "| id | select\\_type | table | partitions | type | possible_keys | key | key\\_len | ref | rows | filtered | scalability | Extra |",
                        "|---|---|---|---|---|---|---|---|---|---|---|---|---|",
                        "| 1  | DELETE | *users* | NULL | ALL | NULL | NULL | NULL | NULL | 1 | ☠️ **100.00%** | ☠️ **O(n)** | Using where |"
                    ],
                    "Case": [
                        "### Explain信息解读",
                        "#### Type信息解读",
                        "* ☠️ **ALL**: 最坏的情况, 从头到尾全表扫描.",
                        "#### Extra信息解读",
                        "* **Using where**: WHERE条件用于筛选出与下一个表匹配的数据然后返回给客户端. 除非故意做的全表扫描, 否则连接类型是ALL或者是index, 且在Extra列的值中没有Using Where, 则该查询可能是有问题的."
                    ],
                    "Position": 0
                }
            ],
            "Backtraces": [
                "#10 /routes/web.php:56",
                "#35 /Users/yaozm/Documents/develop/laravel-soar/src/Http/Middleware/OutputSoarScoreMiddleware.php:37",
                "#56 /public/index.php:55",
                "#57 /server.php:21"
            ]
        },
        {
            "Summary": "[★★★★★|100分|9.59ms|insert into `users` (`name`, `email`, `email_verified_at`, `password`, `remember_token`) values ('soar', 'soar@soar.com', '2023-06-05 03:19:30', '$2y$10$92IXUNpkjO0rOQ5byMi.Ye4oKoEa3Ro9llC/.og/at2.uheWG/igi', 'lEtsoV3wHW')]",
            "Basic": {
                "Sample": "insert into `users` (`name`, `email`, `email_verified_at`, `password`, `remember_token`) values ('soar', 'soar@soar.com', '2023-06-05 03:19:30', '$2y$10$92IXUNpkjO0rOQ5byMi.Ye4oKoEa3Ro9llC/.og/at2.uheWG/igi', 'lEtsoV3wHW')",
                "Score": 100,
                "Star": "★★★★★",
                "Time": "9.59ms",
                "Connection": "mysql",
                "Driver": "mysql",
                "Tables": [
                    "`laravel`.`users`"
                ]
            },
            "HeuristicRules": [],
            "IndexRules": [],
            "Explain": [
                {
                    "Item": "EXP.000",
                    "Severity": "L0",
                    "Summary": "Explain信息",
                    "Content": [
                        "| id | select\\_type | table | partitions | type | possible_keys | key | key\\_len | ref | rows | filtered | scalability | Extra |",
                        "|---|---|---|---|---|---|---|---|---|---|---|---|---|",
                        "| 1  | INSERT | *users* | NULL | ALL | NULL | NULL | NULL | NULL | 0 | 0.00% | ☠️ **O(n)** | NULL |"
                    ],
                    "Case": [
                        "### Explain信息解读",
                        "#### Type信息解读",
                        "* ☠️ **ALL**: 最坏的情况, 从头到尾全表扫描."
                    ],
                    "Position": 0
                }
            ],
            "Backtraces": [
                "#10 /routes/web.php:43",
                "#35 /Users/yaozm/Documents/develop/laravel-soar/src/Http/Middleware/OutputSoarScoreMiddleware.php:37",
                "#56 /public/index.php:55",
                "#57 /server.php:21"
            ]
        }
    ]
}

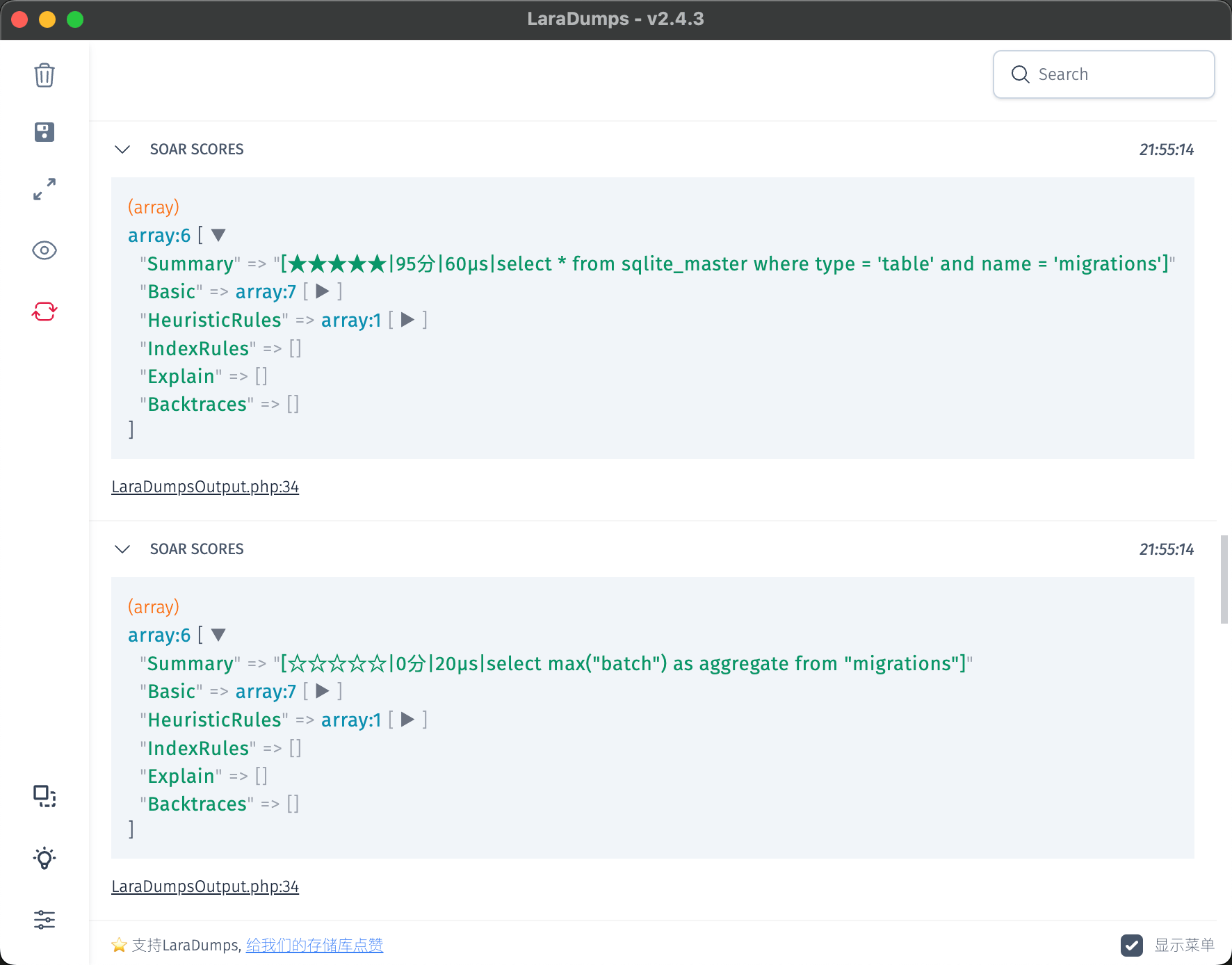

LaraDumps

Install laradumps/laradumps
Configure soar.outputs.Outputs\LaraDumpsOutput::class

Log

Configure soar.outputs.Outputs\LogOutput::class

Ray

Install spatie/laravel-ray
Configure soar.outputs.Outputs\RayOutput::class

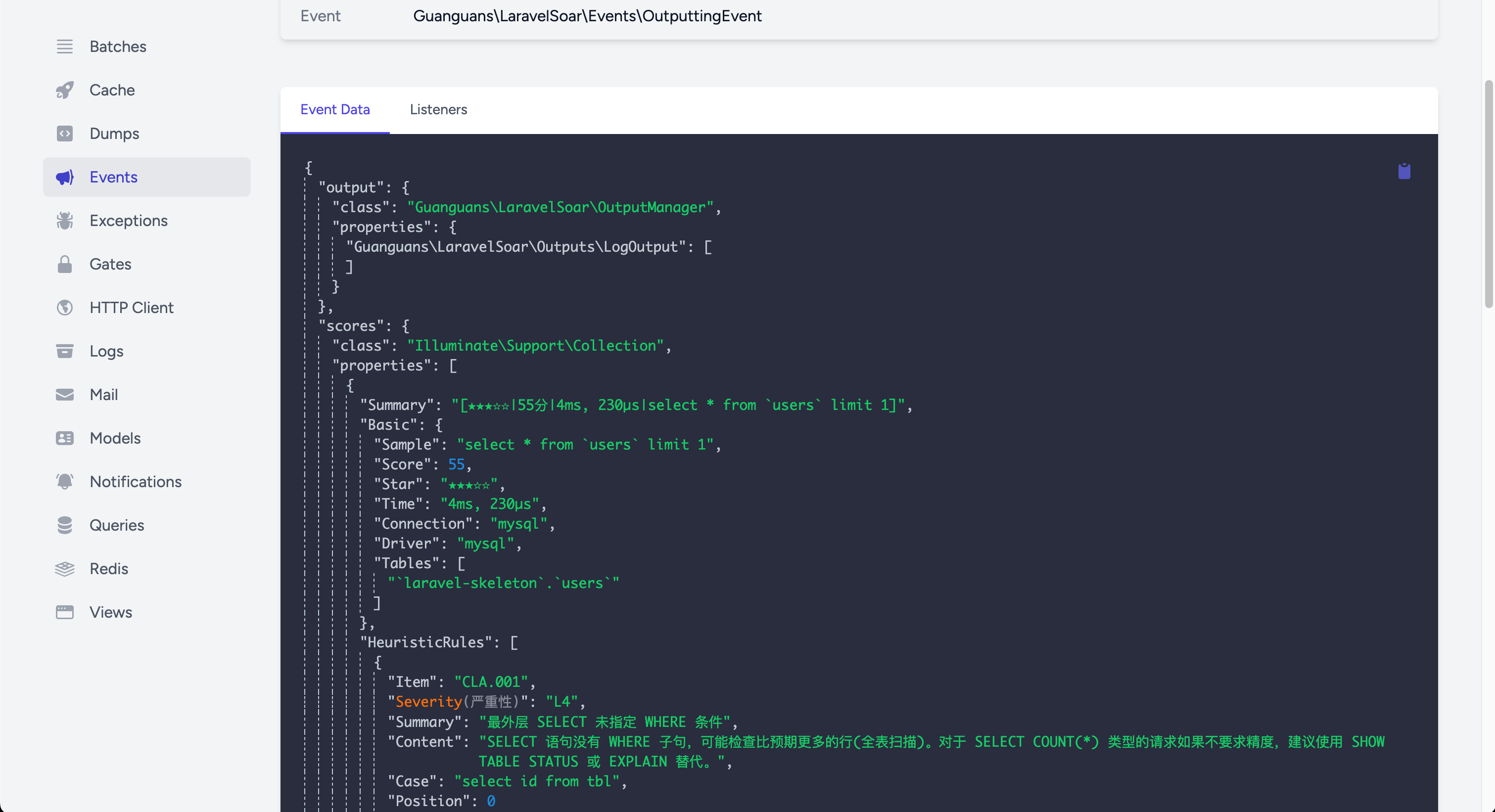

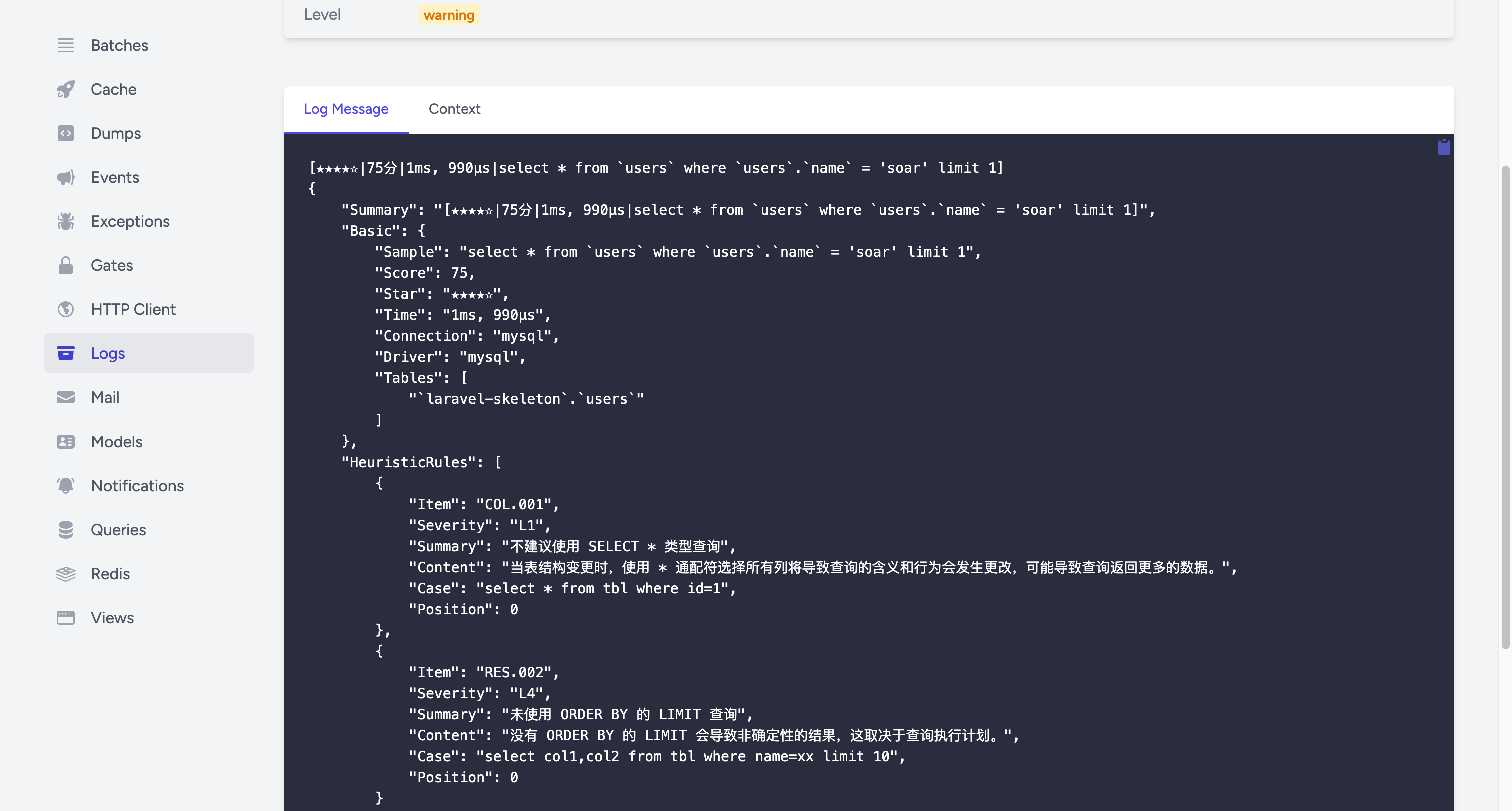

Telescope

Telescope's EventWatcher and LogWatcher can watch the output of Soar scores.

Install laravel/telescope
Configure telescope.watchers:

<?php

use Laravel\Telescope\Watchers;

return [
    // ...

    'watchers' => [
        // ...

        Watchers\EventWatcher::class => [
            'enabled' => env('TELESCOPE_EVENT_WATCHER', true),
            'ignore' => [
                Guanguans\LaravelSoar\Events\OutputtedEvent::class, // ignore `OutputtedEvent`
            ],
        ],

        // ...

        Watchers\LogWatcher::class => [
            'enabled' => env('TELESCOPE_LOG_WATCHER', true),
            'level' => 'warning', // `warning` level
        ],

        // ...
    ],
];

Custom output

Implement OutputContract
Configure soar.outputs.Outputs\CustomOutput::class

Soar commands

details

╰─ php artisan                                                                            ─╯
...
Available commands:
...
 soar
  soar:clear                            Clear the Soar log file
  soar:run                              Run Soar with the given options
  soar:score                            Get the Soar scores of the given SQL statements
...

Usage example(support standard input)

echo 'select * from foo; select * from bar;' | php artisan soar:score --ansi
php artisan soar:score --ansi
php artisan soar:score --ansi --option=-query='select * from foo; select * from bar;'
php artisan soar:score --ansi < tests/Fixtures/queries.sql

Soar facade and methods

Methods of the query builder `Mixin`

Testing

composer test

Changelog

Please see CHANGELOG for more information on what has changed recently.

Contributing

Please see CONTRIBUTING for details.

Security Vulnerabilities

Please review our security policy on how to report security vulnerabilities.

Credits

License

The MIT License (MIT). Please see License File for more information.

guanguans / laravel-soar

Maintainers

Details

README

laravel-soar

Feature

Related Links

Requirement

Installation

Configuration

Publish files(optional)

⚠️ When running in a unix OS non-cli environment, may throw Fatal error: ...Exit Code: 2(Misuse of shell builtins)

Usage

Enable to automatically output SQL optimization suggestions

Configure `SOAR_ENABLED`

Or configure `soar.enabled`

Install and configure outputs(optional)

Soar commands

Usage example(support standard input)

Soar facade and methods

Methods of the query builder `Mixin`

Testing

Changelog

Contributing

Security Vulnerabilities

Credits

License

guanguans / laravel-soar

Maintainers

Details

README

laravel-soar

Feature

Related Links

Requirement

Installation

Configuration

Publish files(optional)

⚠️ When running in a unix OS non-cli environment, may throw Fatal error: ...Exit Code: 2(Misuse of shell builtins)

Usage

Enable to automatically output SQL optimization suggestions

Configure SOAR_ENABLED

Or configure soar.enabled

Install and configure outputs(optional)

Soar commands

Usage example(support standard input)

Soar facade and methods

Methods of the query builder Mixin

Testing

Changelog

Contributing

Security Vulnerabilities

Credits

License

Configure `SOAR_ENABLED`

Or configure `soar.enabled`

Methods of the query builder `Mixin`
