README

Media Vault for Laravel + Filament: upload once, reuse everywhere. One vault storage copy, many gallery memberships, morph attachments for your domain models.

Works standalone in any Filament app. Optional integrations with VoodBuilder (Asset Manager), Voodflow (e.g. Approval Page heroes), and any third-party package that registers its own vault root.

Built on Filament 5 and Spatie Media Library.

Screenshots

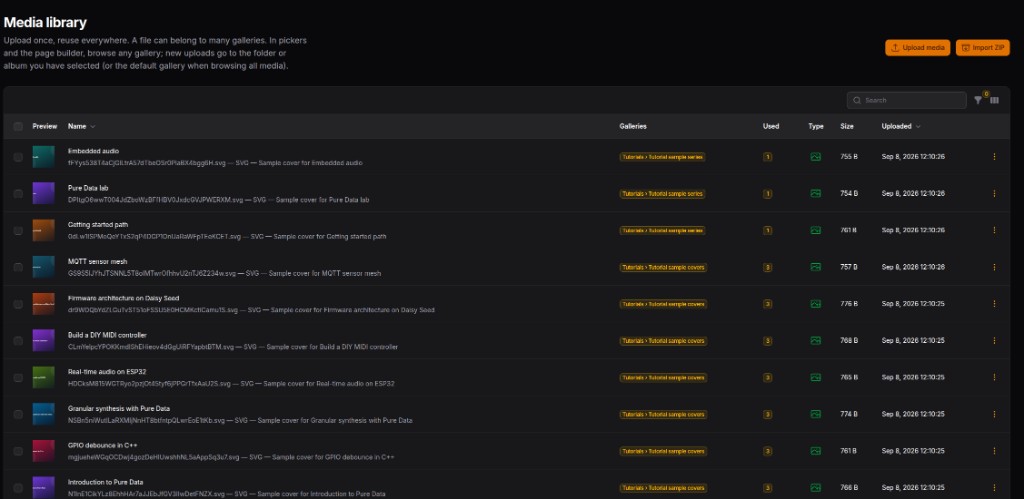

Media library

Central library: preview, galleries, usage counts, type, size, and upload time. Upload media or Import ZIP from the header.

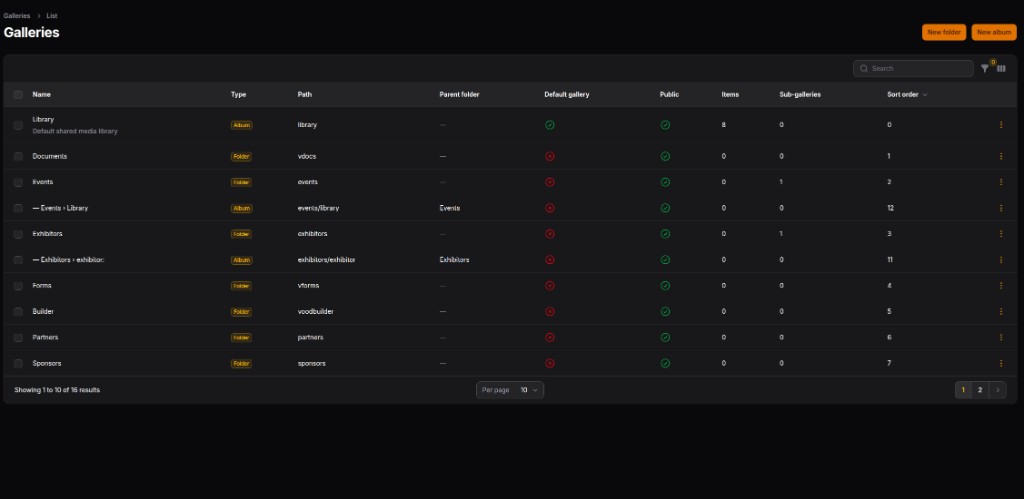

Galleries (folders & albums)

Organize vault media with a hierarchy: Folder = container (year, product, plugin…); Album = holds photos/files. Mark a default gallery and toggle public albums.

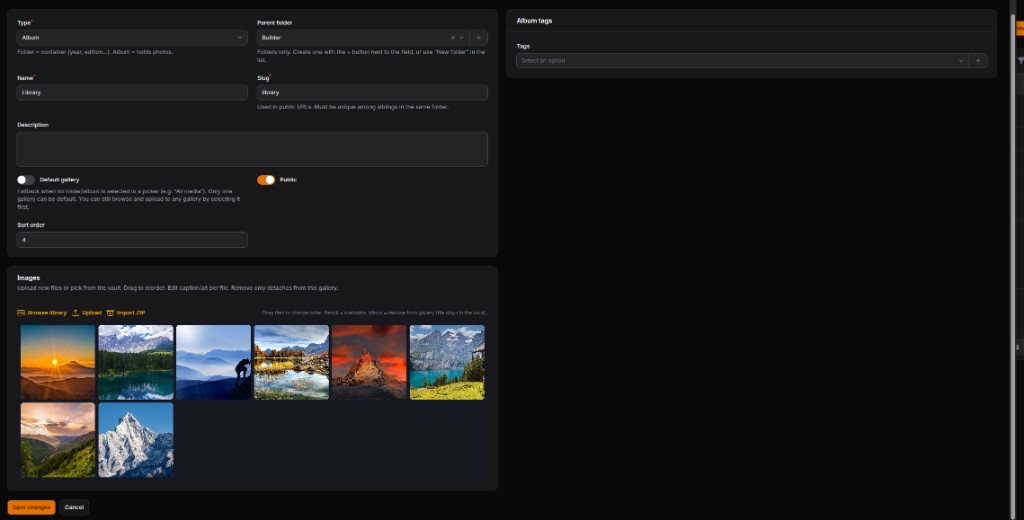

Album editor

Edit album metadata (parent, slug, public/default), manage images (browse library, upload, ZIP import, drag reorder), and assign album tags.

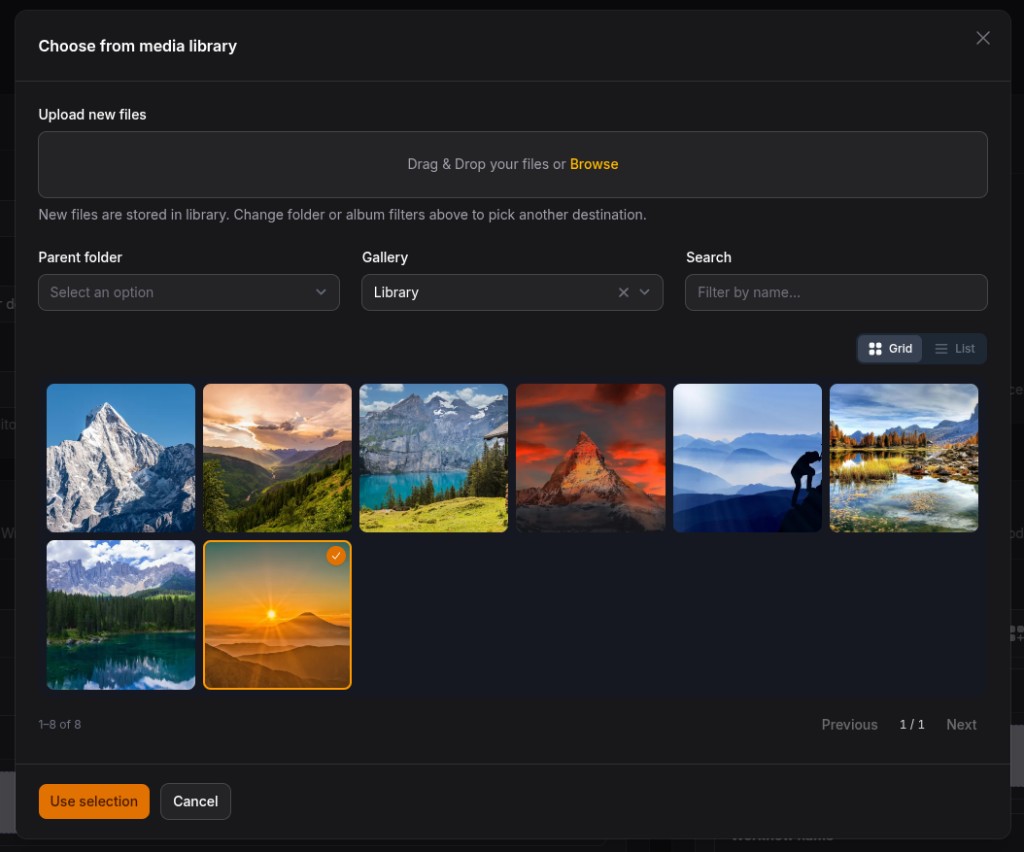

Picker (`VmediaPicker`)

Modal for forms and builders: upload into the selected folder/album, filter by parent/gallery, search, grid/list view, multi-select → Use selection.

Requirements

Requirement	Notes
PHP	8.4+
Laravel	12 or 13
Filament	5
Spatie Media Library	11
PHP `gd` extension	Must be built with JPEG (and preferably WebP + FreeType). Spatie generates `thumb` conversions on upload; without JPEG support you get `imagecreatefromstring(): No JPEG support in this PHP build`.

Verify in the app container:

php -r 'var_export(gd_info()["JPEG Support"] ?? false);'
# expect: true

Docker / php:*-fpm example:

RUN apt-get update && apt-get install -y \
    libpng-dev libjpeg-dev libwebp-dev libfreetype6-dev \
    && docker-php-ext-configure gd --with-freetype --with-jpeg --with-webp \
    && docker-php-ext-install gd

Quick start (5 minutes)

composer require voodflow/vmedia
php artisan vmedia:install

->plugins([
    \Voodflow\Vmedia\VmediaPlugin::make(),
])

Attach media to a model:

use Voodflow\Vmedia\Concerns\HasAttachedMedia;

class Booth extends Model
{
    use HasAttachedMedia;
}

Upload in a Filament form:

use Voodflow\Vmedia\Filament\Forms\Components\VmediaFileUpload;

VmediaFileUpload::make('logo')
    ->collection('logo')
    ->image();

Pick existing vault media:

use Voodflow\Vmedia\Filament\Forms\Components\VmediaPicker;

VmediaPicker::make('gallery')
    ->collection('gallery')
    ->images()
    ->multiple();

Plugin vault roots (for packages & host apps)

VoodMedia does not hardcode product folders. Each package (or the host app) registers a top-level folder + default Library album, then uses it for uploads/pickers.

1. Register + ensure on boot

In your package ServiceProvider (or AppServiceProvider):

use Voodflow\Vmedia\Support\Integration\RegistersPluginVault;

public function boot(): void
{
    if (! class_exists(RegistersPluginVault::class)) {
        return;
    }

    // source = stable id (integration_source), slug = folder slug in the UI
    RegistersPluginVault::register(
        source: 'acme',
        slug: 'acme',
        name: 'Acme', // or fn (): string => __('acme::nav.media_root')
        // integrationKey: 'root:acme', // optional; default root:{slug}
    );
    RegistersPluginVault::ensureOnBoot($this->app, 'acme');
}

Equivalent low-level API:

use Voodflow\Vmedia\Vmedia;

Vmedia::registerPluginVault('acme', 'acme', 'Acme');
Vmedia::ensurePluginVault('acme'); // or RegistersPluginVault::ensureOnBoot(...)

After boot you get a folder Acme with a child Library album (upload target when browsing that folder).

Sync all registered roots (after companions have booted):

php artisan vmedia:ensure-plugin-roots

2. Use the vault in code

use Voodflow\Vmedia\Support\Integration\PluginVaultRootGroup;
use Voodflow\Vmedia\Support\Integration\PluginVaultLibraryGallery;
use Voodflow\Vmedia\Support\MediaLibrary;
use Voodflow\Vmedia\Filament\Forms\Components\VmediaPicker;

// Top-level folder (KIND_GROUP)
$root = PluginVaultRootGroup::for('acme');

// Default Library album under that folder (KIND_ALBUM) — prefer this for uploads
$library = PluginVaultLibraryGallery::album('acme');

MediaLibrary::store($uploadedFile, $library);

// Lock a Filament picker to your plugin library
VmediaPicker::make('hero')
    ->images()
    ->attachToRecord(false)
    ->vaultGallery(fn (): int => (int) PluginVaultLibraryGallery::album('acme')->getKey());

Optional: nest under a configured parent (settings / multi-tenant layout):

PluginVaultRootGroup::for('acme', $optionalOuterRootId);

3. Conventions

Concept	Rule
`source`	Stable string stored as `integration_source` (e.g. `acme`, `voodflow`)
`slug`	URL/path segment for the folder
Library album	Auto-created under the root; use it as default upload target
Isolation	Your package owns only its `source`; do not hardcode other products in VoodMedia

Shared Logos folder is provided by VoodMedia itself (PluginVaultRootGroup::logos()).

Model

Vault — singleton Spatie owner of every file on disk (one storage copy)
Galleries — many-to-many membership (a photo/video/file can sit in several galleries)
Folders vs albums — folders nest structure; albums hold media
Default gallery — fallback target for uploads when no gallery is selected; Choose can browse any gallery
Attachments — HasAttachedMedia morph pivot (domain models never own Spatie collections)

Features

Area	What you get
Admin	Library + galleries hierarchy, metadata (alt, caption, credits; video poster on videos), soft delete / trash
Picker	`VmediaPicker` + `VmediaFileUpload` for other plugins
Files	Photos, videos, and documents (PDF/Office/ZIP…)
Thumbs	Spatie `thumb` conversion (WebP) for images
Usage	Attachment counts; delete protected when media is in use
Tags	Media tags + album tags; bulk assign
Duplicates	SHA-256 reuse (optional)
ZIP import	Bulk extract into the vault
Events	`MediaStored`, `MediaAttached`, `MediaDetached`, `MediaDeleted`, `MediaRestored`
Stats	Dashboard widget + `php artisan vmedia:stats`
Orphans	`php artisan vmedia:prune-orphans --force`
Public	`GET /galleries/{slug}` Blade gallery for `is_public` galleries

HTTP API (package-owned)

Method	Path	Role
`GET`	`/vmedia/media/galleries`	Gallery list + counts
`GET`	`/vmedia/media?page=&per_page=&gallery_id=&type=&q=`	Paginated assets (`type`: image\|video\|file)
`POST`	`/vmedia/media/upload`	Upload; optional `gallery_id` (folder/album — folders resolve to library album)
`DELETE`	`/vmedia/media/{media}`	Soft-delete (`?force=1` force-deletes)

All routes require authentication (and optional Gate ability VMEDIA_ABILITY).

Config highlights

VMEDIA_ENABLED=true
VMEDIA_DISK=public
VMEDIA_CONVERSIONS=true
VMEDIA_DETECT_DUPLICATES=true
VMEDIA_PROTECT_DELETE=true
VMEDIA_PUBLIC_GALLERIES=true

Storage disk (local / S3 / …)

VMEDIA_DISK is any disk from Laravel’s config/filesystems.php. Spatie stores vault files on that disk (MediaVault → useDisk(...)).

Local (default):

VMEDIA_DISK=public

S3 (or compatible): define the disk as usual, then point VoodMedia at it:

FILESYSTEM_DISK=s3
AWS_ACCESS_KEY_ID=…
AWS_SECRET_ACCESS_KEY=…
AWS_DEFAULT_REGION=eu-west-1
AWS_BUCKET=your-bucket
AWS_URL=https://your-bucket.s3.eu-west-1.amazonaws.com
# optional: AWS_ENDPOINT=…  AWS_USE_PATH_STYLE_ENDPOINT=true  (MinIO, R2, …)

VMEDIA_DISK=s3

config/filesystems.php (stock Laravel s3 disk is enough):

's3' => [
    'driver' => 's3',
    'key' => env('AWS_ACCESS_KEY_ID'),
    'secret' => env('AWS_SECRET_ACCESS_KEY'),
    'region' => env('AWS_DEFAULT_REGION'),
    'bucket' => env('AWS_BUCKET'),
    'url' => env('AWS_URL'),
    'endpoint' => env('AWS_ENDPOINT'),
    'use_path_style_endpoint' => env('AWS_USE_PATH_STYLE_ENDPOINT', false),
],

Require the Flysystem S3 adapter if the host app does not already:

composer require league/flysystem-aws-s3-v3 "^3.0"

No VoodMedia-specific S3 code path: Filament uploads and Spatie conversions use the configured disk. Keep Livewire temporary uploads on a local disk if you prefer (LIVEWIRE_TEMPORARY_FILE_UPLOAD_DISK=local); only the final vault objects need VMEDIA_DISK=s3.

Public URLs come from Storage::disk(...)->url(...) (local → /storage/..., S3 → bucket/CloudFront URL). Use a public bucket (or CDN AWS_URL) so thumbs and embeds resolve without signed URLs.

Docs

Release checklist (internal): docs/RELEASE_CHECKLIST.md

License

MIT — see LICENSE.
