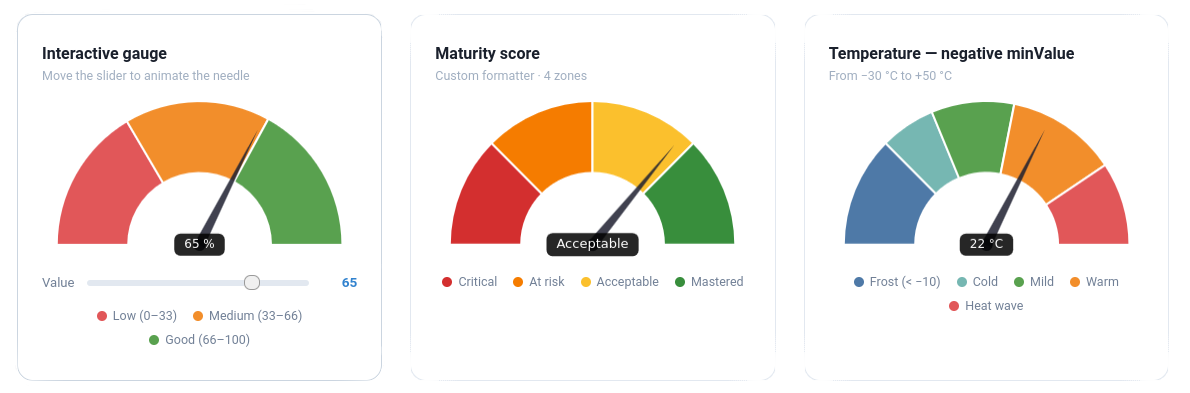

A Chart.js plugin that adds a gauge chart type — a half-doughnut with an animated needle and a configurable value label.

Features

• Gauge chart type (type: 'gauge') built on Chart.js's doughnut controller
• Animated needle with configurable radius, width, length, and color
• Value label with custom formatter, background, border-radius, padding, and color
• Supports minValue to offset the gauge starting point
• Compatible with Chart.js v4
• Works as a Laravel Composer package (publishes pre-built assets) or a standalone npm package

Installation

npm / yarn

npm install chart.js @sourcentis/chartjs-gauge
# or
yarn add chart.js @sourcentis/chartjs-gauge

Composer (Laravel)

composer require sourcentis/chartjs-gauge

Then publish the pre-built assets:

php artisan vendor:publish --tag=chartjs-gauge-assets

This copies the dist/ files to public/vendor/chartjs-gauge/.

Quick Start

ES module (Vite / webpack)

import { Chart } from "chart.js";
import "@sourcentis/chartjs-gauge"; // auto-registers the controller

const ctx = document.getElementById("myGauge");

new Chart(ctx, {
    type: "gauge",
    data: {
        datasets: [{
            value: 65,                                          // needle position
            data: [33, 66, 100],                               // segment boundaries
            backgroundColor: ["#E15759", "#F28E2B", "#59A14F"],
        }],
    },
    options: {
        needle: {
            radiusPercentage: 2,
            widthPercentage: 3.2,
            lengthPercentage: 80,
            color: "rgba(0, 0, 0, 1)",
        },
        valueLabel: {
            display: true,
            formatter: (value) => `${value}%`,
            color: "rgba(255, 255, 255, 1)",
            backgroundColor: "rgba(0, 0, 0, 0.8)",
        },
    },
});

CDN (UMD)

<script src="https://cdn.jsdelivr.net/npm/chart.js@4/dist/chart.umd.min.js"></script>
<script src="/vendor/chartjs-gauge/chartjs-gauge.min.js"></script>

<canvas id="myGauge"></canvas>
<script>
    new Chart(document.getElementById("myGauge"), {
        type: "gauge",
        data: {
            datasets: [{
                value: 65,
                data: [33, 66, 100],
                backgroundColor: ["#E15759", "#F28E2B", "#59A14F"],
            }],
        },
    });
</script>

Dataset Properties

Property	Type	Default	Description
value	number	—	Required. Current needle position.
minValue	number	0	Minimum gauge value (offset starting point).
data	number[]	—	Required. Segment boundary values (cumulative).
backgroundColor	string[]	—	Colors for each segment.

Segments vs. value

data defines the segment boundaries on the gauge arc. The value property controls where the needle points independently of the segments.

// Three segments: 0–33 (red), 33–66 (orange), 66–100 (green)
// Needle at 50 (in the orange zone)
datasets: [{
    value: 50,
    data: [33, 66, 100],
    backgroundColor: ["#E15759", "#F28E2B", "#59A14F"],
}]

Using minValue

// Gauge from -20 to +20, needle at +5
datasets: [{
    value: 5,
    minValue: -20,
    data: [-10, 0, 10, 20],
    backgroundColor: ["#d32f2f", "#ef5350", "#66bb6a", "#2e7d32"],
}]

Options

Needle

Configure via options.needle:

Option	Type	Default	Description
radiusPercentage	number	2	Needle pivot circle radius as % of chart width.
widthPercentage	number	3.2	Needle base width as % of chart width.
lengthPercentage	number	80	Needle length as % of the arc depth (inner→outer radius).
color	string	"rgba(0, 0, 0, 1)"	Needle and pivot circle fill color.

options: {
    needle: {
        radiusPercentage: 2,
        widthPercentage: 3.2,
        lengthPercentage: 80,
        color: "rgba(0, 0, 0, 1)",
    },
}

Value Label

Configure via options.valueLabel:

Option	Type	Default	Description
display	boolean	true	Show or hide the label.
formatter	function	(v) => String(v)	Format the displayed value. Receives the raw value.
fontSize	number	12	Font size in pixels.
color	string	"rgba(255, 255, 255, 1)"	Text color.
backgroundColor	string	"rgba(0, 0, 0, 0.8)"	Background fill color.
borderRadius	number	5	Background corner radius in pixels.
padding	object	{top:5,right:10,bottom:5,left:10}	Inner padding around the label text.
bottomMarginPercentage	number	5	Vertical offset from gauge center as % of chart width.

options: {
    valueLabel: {
        display: true,
        formatter: (value) => `${value.toFixed(1)}%`,
        fontSize: 14,
        color: "#ffffff",
        backgroundColor: "rgba(0, 0, 0, 0.8)",
        borderRadius: 4,
        padding: { top: 6, right: 12, bottom: 6, left: 12 },
        bottomMarginPercentage: 5,
    },
}

Formatter examples

// Percentage
formatter: (value) => `${value}%`

// Currency
formatter: (value) => new Intl.NumberFormat("fr-FR", { style: "currency", currency: "EUR" }).format(value)

// Score label
formatter: (value) => value >= 80 ? "Excellent" : value >= 50 ? "Moyen" : "Faible"

// Hide label
valueLabel: { display: false }

Arc (inherited from Doughnut)

The gauge arc is a 180° half-doughnut by default. You can override these Chart.js options:

Option	Default	Description
rotation	-90	Start angle in degrees.
circumference	180	Arc span in degrees.
cutout	"50%"	Inner radius as % of outer radius.

Examples

Maturity score (0–100, three zones)

new Chart(ctx, {
    type: "gauge",
    data: {
        datasets: [{
            value: 72,
            data: [40, 80, 100],
            backgroundColor: ["#E15759", "#F28E2B", "#59A14F"],
        }],
    },
    options: {
        needle: { color: "#333" },
        valueLabel: {
            formatter: (v) => `${v} / 100`,
            backgroundColor: "#333",
        },
    },
});

Full-circle gauge (360°)

new Chart(ctx, {
    type: "gauge",
    data: {
        datasets: [{
            value: 270,
            data: [90, 180, 270, 360],
            backgroundColor: ["#4e79a7", "#f28e2b", "#e15759", "#76b7b2"],
        }],
    },
    options: {
        rotation: -180,
        circumference: 360,
        cutout: "70%",
        valueLabel: { formatter: (v) => `${v}°` },
    },
});

With Chart.js datalabels plugin

import ChartDataLabels from "chartjs-plugin-datalabels";
Chart.register(ChartDataLabels);

options: {
    plugins: {
        datalabels: {
            formatter: () => null,  // hide segment labels
        },
    },
}

Laravel / Vite Integration

If you use this package via Composer and build assets with Vite, add an alias in vite.config.mjs:

import path from "path";

export default defineConfig({
    resolve: {
        alias: {
            "@sourcentis/chartjs-gauge": path.resolve(
                __dirname,
                "vendor/sourcentis/chartjs-gauge/dist/chartjs-gauge.esm.js"
            ),
        },
    },
});

Then import normally in your JS:

import "@sourcentis/chartjs-gauge";

API

Named export

import { GaugeController } from "@sourcentis/chartjs-gauge";

// Manual registration (if you don't want auto-registration on import)
Chart.register(GaugeController, ArcElement);

Default export

import ChartjsGauge from "@sourcentis/chartjs-gauge";

ChartjsGauge.install(Chart); // same as Chart.register(GaugeController, ArcElement)

Browser Support

Same as Chart.js v4 — all modern browsers (Chrome, Firefox, Safari, Edge).

Contributing

1. Clone the repo
2. npm install
3. npm run dev — watch mode
4. npm run build — production build

License

MIT © Sourcentis

Acknowledgements

Inspired by chartjs-gauge by haiiaaa.
