README

⭐ Found this project useful? Give it a star on GitHub! It helps us maintain and improve the project.

Symfony bundle for tracking and analyzing route performance metrics. Automatically records request time, database query count, and query execution time for performance analysis.

📋 Compatible with Symfony 6.1+, 7.x, and 8.x - This bundle requires Symfony 6.1 or higher.

What is this?

This bundle helps you track and analyze route performance in your Symfony applications:

📊 Automatic Performance Tracking - Automatically tracks route performance metrics
🔍 Query Analysis - Counts and times database queries per route
⏱️ Request Timing - Measures request execution time
📈 Performance Analysis - Identifies slow routes and query-heavy endpoints
🎯 Route Metrics - Stores metrics per route and environment
🔧 Manual Updates - Command to manually set/update route metrics

Quick Search Terms

Looking for: route performance, performance monitoring, query tracking, Symfony performance, route metrics, performance analysis, database query tracking, request timing, profiling, performance bundle? You've found the right bundle!

Features

✅ Automatic route performance tracking via event subscribers
✅ Database query counting and execution time tracking
✅ Request execution time measurement
✅ Memory usage tracking - Track peak memory consumption per route
✅ Access frequency tracking - Track how often routes are accessed
✅ HTTP status code tracking - Track and calculate ratios for HTTP status codes (200, 404, 500, etc.)
✅ Sub-request tracking - Optional tracking of sub-requests (ESI, fragments, includes) in addition to main requests
✅ Performance notifications - Email, Slack, Teams, and webhook notifications for performance alerts
✅ Route data persistence in database
✅ Environment-specific metrics (dev, test, prod)
✅ Configurable route ignore list
✅ Command to manually set/update route metrics
✅ Support for multiple Doctrine connections
✅ Performance dashboard with filtering and sorting
✅ Data export - CSV and JSON export functionality
✅ Record management - Delete individual records (optional)
✅ Review system - Mark and edit records as reviewed with improvement tracking (optional)
✅ Bootstrap and Tailwind CSS support - Choose your preferred CSS framework
✅ Role-based access control for dashboard
✅ WebProfiler integration with ranking information
✅ Chart.js integration - Interactive performance charts
✅ Symfony UX Twig Components - Optional modern component system
✅ Symfony 6.1+, 7.x, and 8.x compatible

Screenshots

The bundle provides a web dashboard to monitor and analyze route performance. Below are the main views.

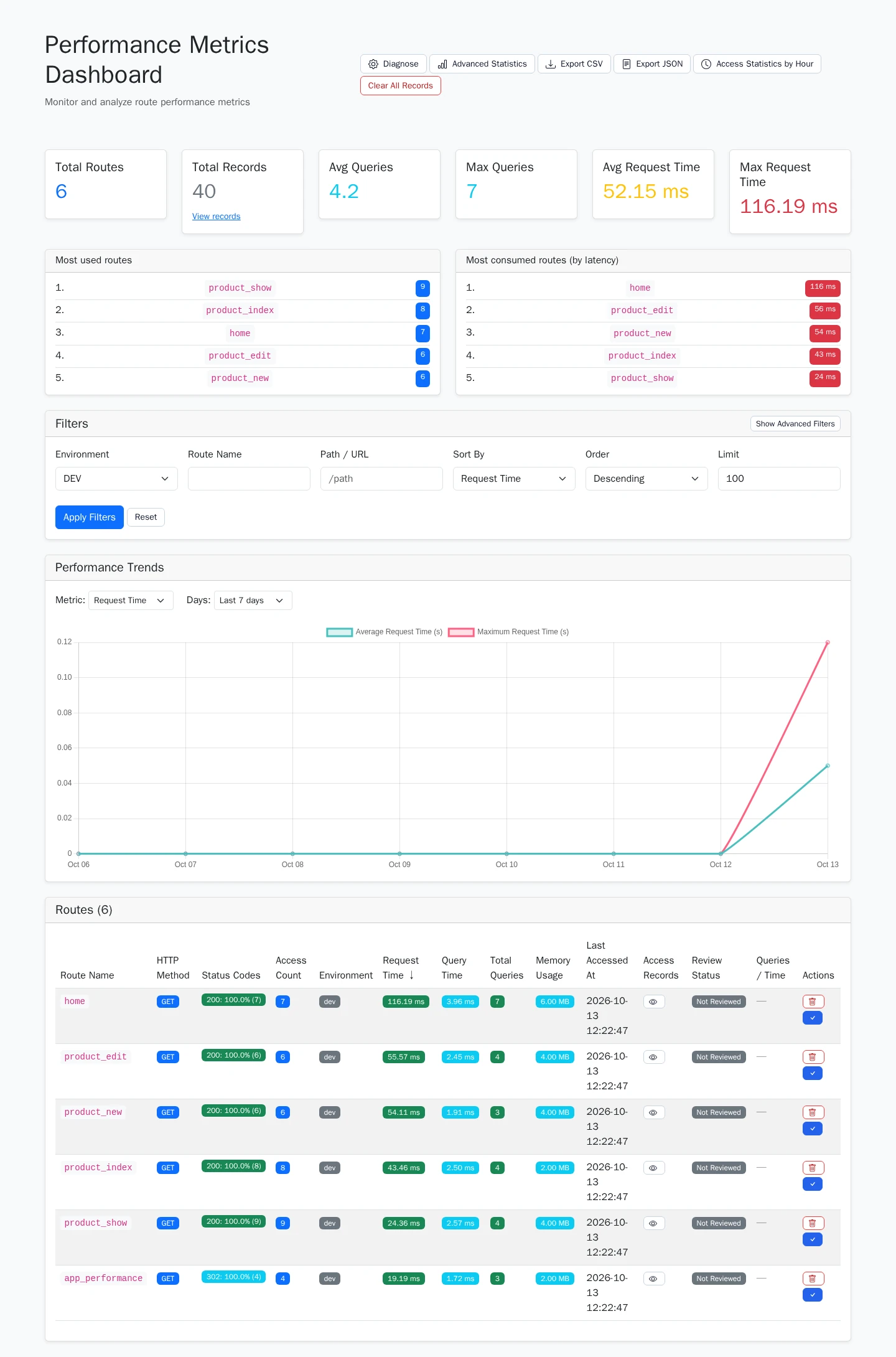

Performance Metrics Dashboard

The main dashboard shows KPIs (total routes, records, average/max queries and request time), top routes by usage and by latency, filters (environment, sort, limit), an optional “Optional Dependencies Missing” alert with composer require hints, a Performance Trends chart (average and max request time over days), and a Routes table with columns: route name, HTTP method, status codes, access count, environment, request time, query time, total queries, memory usage, last accessed at, access records link, and review status.

Access: dashboard path configured in nowo_performance.dashboard.path (e.g. /performance). Use Diagnose, Advanced Statistics, Export CSV/JSON, Access Statistics by Hour, and Clear All Records from the toolbar.

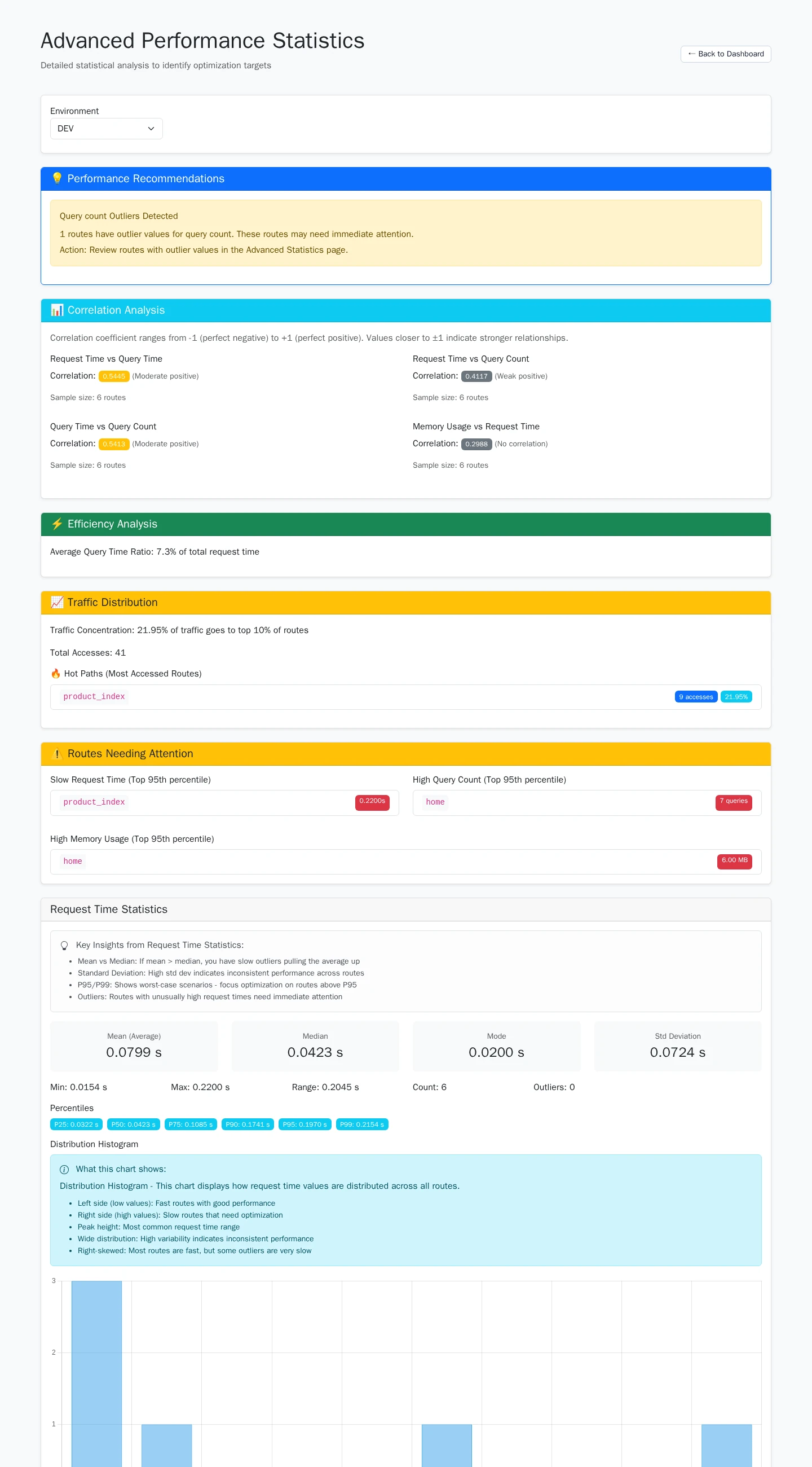

Advanced Performance Statistics

This view provides statistical analysis to find optimization targets: Performance Recommendations (e.g. high average query count, request time outliers), Correlation Analysis (request time vs query time, query time vs query count, memory vs request time), Efficiency Analysis (query time ratio), Traffic Distribution and hot/bad routes, Routes Needing Attention (high request time or query count by percentile), and detailed Request Time, Query Time, Query Count, Memory Usage, and Access Count sections with min/mean/median/max, percentiles, and distribution histograms.

Access: Advanced Statistics button from the main dashboard. Requires enough route data for meaningful stats.

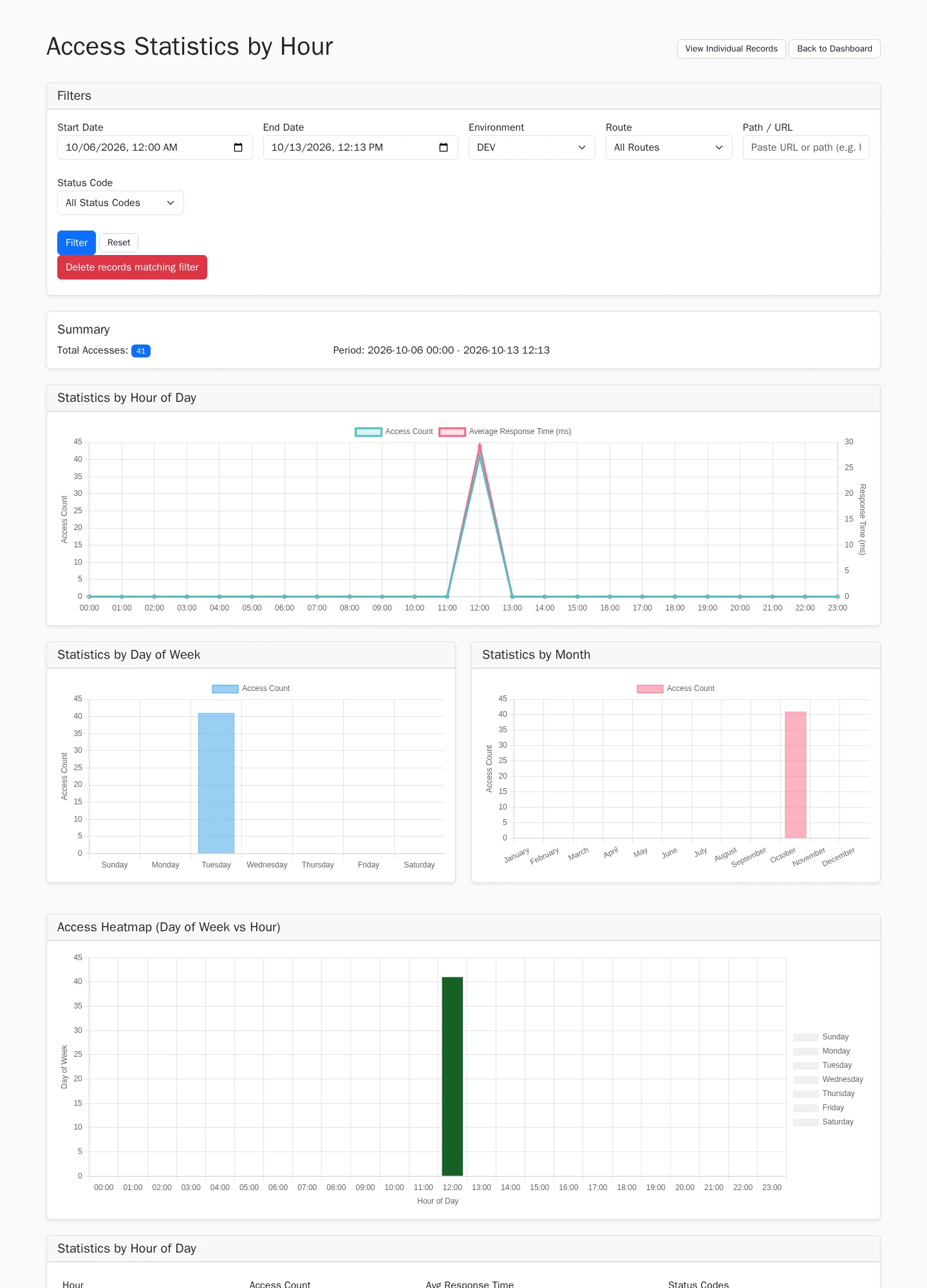

Access Statistics by Hour

When temporal access records are enabled (enable_access_records: true), this page shows access patterns over time: filters (date range, environment, route, status code), Total Accesses and period, Statistics by Hour of Day (line chart: access count and average response time), Statistics by Day of Week and by Month (bar charts), Access Heatmap (day of week vs hour), and a detailed table by hour with access count, average response time, and status code breakdown. You can Delete records matching filter from here.

Access: Access Statistics by Hour from the main dashboard. Requires enable_access_records: true and the routes_data_records table (see Configuration).

Installation

composer require nowo-tech/performance-bundle

Then, register the bundle in your config/bundles.php:

<?php

return [
    // ...
    Nowo\PerformanceBundle\NowoPerformanceBundle::class => ['all' => true],
];

Quick Start

Configure the bundle (optional - works with defaults):

# config/packages/nowo_performance.yaml
nowo_performance:
    enabled: true
    environments: ['prod', 'dev', 'test']
    connection: 'default'
    track_queries: true
    track_request_time: true
    ignore_routes:
        - '_wdt'
        - '_profiler'
        - 'web_profiler*'
        - '_error'
        dashboard:
            enabled: true
            path: '/performance'
            template: 'bootstrap'  # or 'tailwind'
            roles: ['ROLE_ADMIN']  # Optional: restrict access

Create the database table(s):

Option A: Using the bundle commands (Recommended):

php bin/console nowo:performance:create-table
# If you use temporal access records (enable_access_records: true):
php bin/console nowo:performance:create-records-table
# Or sync both tables in one go (add/alter columns from entities):
php bin/console nowo:performance:sync-schema

Option B: Using Doctrine Schema:

php bin/console doctrine:schema:update --force
# or
php bin/console doctrine:migrations:diff
php bin/console doctrine:migrations:migrate

That's it! The bundle will automatically track route performance metrics in the configured environments.

For detailed installation steps (including sync-schema and migrations), see Installation Guide.

Usage

Automatic Tracking

The bundle automatically tracks performance metrics for all routes (except ignored ones) in configured environments.

Manual Metrics Update

Use the command to manually set or update route metrics:

# Set route metrics
php bin/console nowo:performance:set-route app_home \
    --env=dev \
    --request-time=0.5 \
    --queries=10 \
    --query-time=0.2

# Update with worse metrics (higher time or more queries)
php bin/console nowo:performance:set-route app_user_show \
    --env=prod \
    --request-time=1.2 \
    --queries=25 \
    --query-time=0.3 \
    --params='{"id":123}'

Accessing Metrics

use Nowo\PerformanceBundle\Service\PerformanceMetricsService;

// Get route data
$routeData = $metricsService->getRouteData('app_home', 'dev');

// Get all routes for environment
$routes = $metricsService->getRoutesByEnvironment('dev');

// Get worst performing routes
$worstRoutes = $metricsService->getWorstPerformingRoutes('dev', 10);

Requirements

PHP >= 8.1, < 8.6
Symfony 6.1+, 7.x, or 8.x
Doctrine ORM ^2.13 || ^3.0
Doctrine Bundle ^2.8 || ^3.0 (3.0 required for Symfony 8)

Configuration

The bundle works with default settings. Create config/packages/nowo_performance.yaml. For the full reference and all options, see Configuration Guide.

nowo_performance:
    enabled: true
    environments: ['prod', 'dev', 'test']
    connection: 'default'
    table_name: 'routes_data'
    track_queries: true
    track_request_time: true
    track_sub_requests: false
    ignore_routes:
        - '_wdt'
        - '_profiler'
        - 'web_profiler*'
        - '_error'
    dashboard:
        enabled: true
        path: '/performance'
        template: 'bootstrap'  # or 'tailwind'
        roles: []  # empty = unrestricted

Commands

See Commands for full documentation. Main commands:

nowo:performance:create-table - Create or update the main metrics table (routes_data)
nowo:performance:create-records-table - Create or update the access records table (routes_data_records); use when enable_access_records: true
nowo:performance:sync-schema - Sync both tables with entity metadata (add/alter columns)
nowo:performance:set-route - Set or update route performance metrics manually
nowo:performance:diagnose - Diagnostic report of bundle configuration, tables, and tracking status
nowo:performance:check-dependencies - Check status of optional dependencies (UX Icons, Messenger, Mailer)
nowo:performance:purge-records - Purge old access records (by age or all)
nowo:performance:rebuild-aggregates - Rebuild RouteData aggregates from access records

Entity Structure

The RouteData entity stores:

id - Primary key
env - Environment (dev, test, prod)
name - Route name
totalQueries - Total number of database queries
queryTime - Total query execution time in seconds
requestTime - Request execution time in seconds
memoryUsage - Peak memory usage in bytes (nullable)
accessCount - Number of times route was accessed (default: 1)
lastAccessedAt - Last access timestamp (nullable)
httpMethod - HTTP method (GET, POST, PUT, DELETE, etc.) (nullable)
statusCodes - HTTP status codes counts (JSON, e.g., {'200': 100, '404': 5}) (nullable)
reviewed - Whether record has been reviewed (default: false)
reviewedAt - Review timestamp (nullable)
queriesImproved - Whether queries improved after review (nullable)
timeImproved - Whether time improved after review (nullable)
reviewedBy - Username of reviewer (nullable)
params - Route parameters (JSON)
createdAt - Creation timestamp
updatedAt - Last update timestamp

How It Works

Event Subscriber (PerformanceMetricsSubscriber) listens to kernel events
On KernelEvents::REQUEST, it starts tracking:
- Request start time
- Resets query tracking middleware
On KernelEvents::TERMINATE, it:
- Calculates request time
- Collects query count and execution time using multiple strategies:
  - Primary: QueryTrackingMiddleware (DBAL middleware for DBAL 3.x compatibility)
  - Fallback 1: DoctrineDataCollector from Symfony profiler
  - Fallback 2: Request attributes (_profiler, _profiler_profile)
  - Fallback 3: Stopwatch (time only)
- Saves metrics to database via PerformanceMetricsService
Metrics are only updated if they're worse (higher time or more queries)

Query Tracking Architecture

The bundle uses a multi-layered approach for query tracking:

QueryTrackingMiddleware: A custom DBAL middleware that intercepts all database queries at the driver level. This is the primary method and works with DBAL 3.x (which removed SQLLogger).
DoctrineDataCollector: Falls back to Symfony's built-in profiler data collector if the middleware is not available.
Request Attributes: Attempts to access profiler data from request attributes for sub-requests.
Stopwatch: Last resort fallback for timing information only (does not provide query count).

This ensures reliable query tracking across different Symfony and Doctrine versions.

Documentation

Documentation index – Index of all documentation with cross-references
Installation Guide – Step-by-step installation (tables, sync-schema, verify)
Configuration Guide – All options and defaults (source of truth)
Usage Guide – Automatic tracking, manual commands, dashboard customization, events
Commands – All nowo:performance:* commands (create-table, create-records-table, sync-schema, diagnose, purge-records, etc.)
Events & priorities – Custom events and listener flow (relevant for ignore_routes)
Behaviour and notable changes – Why certain behaviours exist; detailed notes on non-obvious changes (e.g. VarDumper in web vs CLI)
Compatibility Guide – Doctrine and DBAL version compatibility
Notifications – Performance alert notifications (Email, Slack, Teams, Webhooks)
CHANGELOG – Version history
UPGRADING – Upgrade instructions
ROADMAP – Future improvements and features

Testing

# Run tests
composer test

# Run with coverage
composer test-coverage

License

The MIT License (MIT). Please see LICENSE for more information.

Contributing

We welcome contributions! Please see CONTRIBUTING.md for details.

Author

Created by Héctor Franco Aceituno at Nowo.tech
