Let editors decide how an image is cut. In the Files section of the CMS they drag a crop box over the image to keep the part that matters, and click its subject to set the focus point. In templates, the Cropped* image methods ($Image.CroppedFocusFill(400, 300) and friends) start from that region and keep the focus point in view, at every size you ask for. Builds on jonom/focuspoint, for Silverstripe 5 and 6.

Maintained by Restruct. If this module saves you time, you can support ongoing maintenance.

A focus point alone cannot leave anything out

Core's Fill() crops around the centre of the image. jonom/focuspoint improves on that: an editor clicks the subject, and FocusFill() crops around that point instead. But every crop still starts from the whole upload, so whatever the photographer caught at the edge (a lamp post, a stranger, a watermark) comes back whenever the requested shape has room for it, and the editor has no way to say "never show this part".

This module adds that missing step. The editor marks the region to keep, once, in the CMS; every Cropped* variant in the templates is cut from that region, and the focus-aware ones also move the focus point into the cropped frame, so it keeps pointing at the same subject.

Crop and focus in the CMS, crop-aware variants in templates

Setting the crop region and focus point

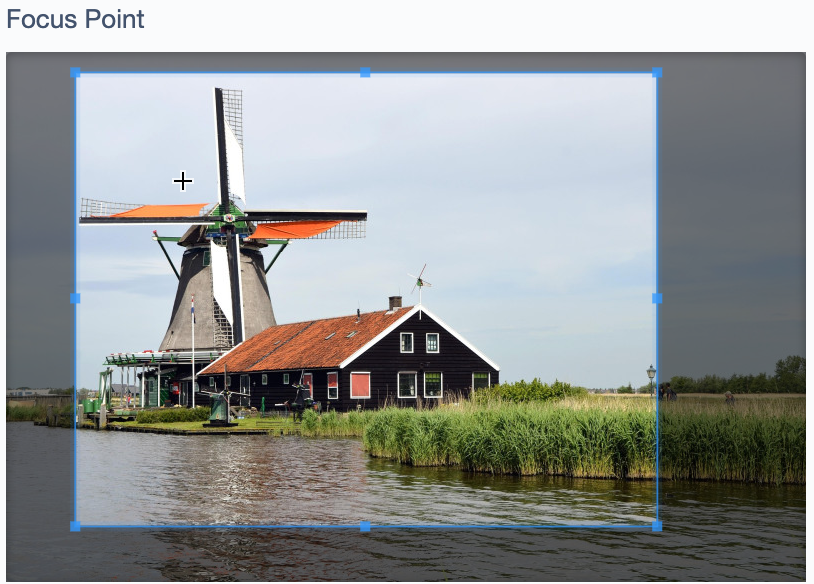

Open an image in Files (the asset admin). The module puts a crop box on the image preview of the Focus Point field that jonom/focuspoint adds to the edit form:

1. Drag the corners or edges of the crop box to set the region to keep. With the default configuration the box covers the whole image when there is no crop yet, and the image itself does not move or zoom.
2. Click the subject of the image, inside the crop box, to set the focus point.
3. Save, and publish the image to use the crop on the live site: the crop is stored on the image record (CropData), which is versioned like the rest of it.

An image with a stored crop opens with the crop box on that region.

Using the crop in templates

The module adds Cropped* methods to Image. Each one first cuts the stored crop region out of the original, then does the manipulation it is named after. Without CropData (or with CropData covering the whole image) they behave exactly like the plain method, so they are safe to use on every image. The plain methods (Fill(), FocusFill() and so on) are not changed: they keep using the whole image. The result is a normal image variant, generated once and cached.

<%-- The crop region, filled to 400 x 300 around the focus point --%>
<img src="$Image.CroppedFocusFill(400, 300).URL" alt="$Image.Title">

<%-- The crop region, filled to 400 x 300 from its centre --%>
<img src="$Image.CroppedFill(400, 300).URL" alt="$Image.Title">

<%-- Plain core method: ignores the crop region --%>
<img src="$Image.Fill(400, 300).URL" alt="$Image.Title">

Cropped methods, the crop region then the core manipulation:

• CroppedImage(): just the crop region, at its original resolution
• CroppedFill($width, $height), CroppedFillMax($width, $height)
• CroppedFit($width, $height), CroppedFitMax($width, $height)
• CroppedScaleWidth($width), CroppedScaleMaxWidth($width), CroppedScaleHeight($height), CroppedScaleMaxHeight($height)
• CroppedResizedImage($width, $height)
• CroppedCropWidth($width), CroppedCropHeight($height)
• CroppedPad($width, $height, $backgroundColor = 'FFFFFF', $transparencyPercent = 0)

Focus-aware cropped methods, the crop region then jonom/focuspoint's manipulation. The focus point is moved into the cropped frame first (clamped to the frame's edge when it lies outside the crop region), so it keeps pointing at the same subject:

• CroppedFocusFill($width, $height): fill around both the crop region and the focus point
• CroppedFocusFillMax($width, $height): the same, without upscaling
• CroppedFocusCropWidth($width): crop to a width, respecting both the crop region and the focus point
• CroppedFocusCropHeight($height): crop to a height, respecting both the crop region and the focus point

Aliases kept from 1.x: CroppedFocusedImage($width, $height) (= CroppedFocusFill) and CroppedImageOnly($width, $height) (= CroppedFill).

CroppedOffsetFocusFill($width, $height, $offsetHorizontal = 0, $offsetVertical = 0) is work in progress: horizontal offset only (a vertical offset raises an error).

SVG images

Together with restruct/silverstripe-svg-images, the crop region also applies to SVG files: svg-images detects this module and crops the SVG's viewBox, so the result is still a vector. The focus-aware methods (CroppedFocusFill(), CroppedFocusFillMax(), CroppedFocusCropWidth(), CroppedFocusCropHeight()) use the focus point on an SVG as on a raster image (since 3.0.4, #11).

Requirements and compatibility

Branch	Module Version	Silverstripe	FocusPoint	PHP
main	3.x	^5 || ^6	^5 || ^6	^8.1 (SS5) / ^8.3 (SS6)
(tags only)	2.0.x	^4 || ^5	^3, later ^4 || ^5	^7.4 || ^8.0
(tags only)	1.x	^3	~2.1

composer.json is the source of truth for exact version constraints. This module replaces the older micschk/silverstripe-focuspointcropper package.

• Silverstripe 5 (PHP 8.1+) or 6 (PHP 8.3+, which Silverstripe 6 itself requires)
• jonom/focuspoint ^5 (Silverstripe 5) or ^6 (Silverstripe 6)
• restruct/silverstripe-simpler ~0.2 (Silverstripe 5) or ^1 (Silverstripe 6)
• ext-gd (or Imagick) for the raster crop, as for any Silverstripe image manipulation

Silverstripe 4 reached end of life in April 2025 and is no longer supported or tested here. Projects still on it should stay on the 2.0.x tags, which remain available. Upgrading from 2.x? See UPGRADING.md and CHANGELOG.md.

Installation

composer require restruct/silverstripe-focuspointcropper

Then flush and build the database (sake dev/build flush=1 on Silverstripe 5, sake db:build --flush on 6): the module adds a CropData column to Image.

Configuration

cropconfig is passed to the Cropper.js crop box as-is. It is configured on Image (the extension's config is merged into the class it is applied to):

SilverStripe\Assets\Image:
  cropconfig:
    aspectRatio: 1.777  # 16:9 ratio
    autoCropArea: 0.8   # Initial crop covers 80% of image

Defaults: autoCropArea: 1, movable: false, rotatable: false, scalable: false, zoomable: false. For all available cropper options, see the Cropper.js 1.5 documentation (the bundled version). The module's tests cover the defaults; options that move or zoom the image are passed through, but are not tested together with the focus point picker that shares the preview.

The CMS preview the cropper works on is FocusPointField's, which this module sets to at most 400x300:

JonoM\FocusPoint\Forms\FocusPointField:
  max_width: 400
  max_height: 300

How the crop is stored

CropData is a JSON string on the Image record, as Cropper.js reports the crop box: x, y, width and height in pixels of the CMS preview, originalX, originalY, originalWidth and originalHeight in pixels of the original image, plus Cropper.js's rotate, scaleX and scaleY. The Cropped* methods use the original* values only, so a crop stays valid when the preview size changes.

Republishing crop data: PublishCropDataTask

Crop data is saved on the draft image. For published images whose live version has no CropData while the draft does, this task republishes them, 100 per run (run it again for the next batch):

vendor/bin/sake dev/tasks/PublishCropDataTask   # Silverstripe 5
vendor/bin/sake tasks:PublishCropDataTask       # Silverstripe 6

Images whose live version already has (other) CropData are left alone.

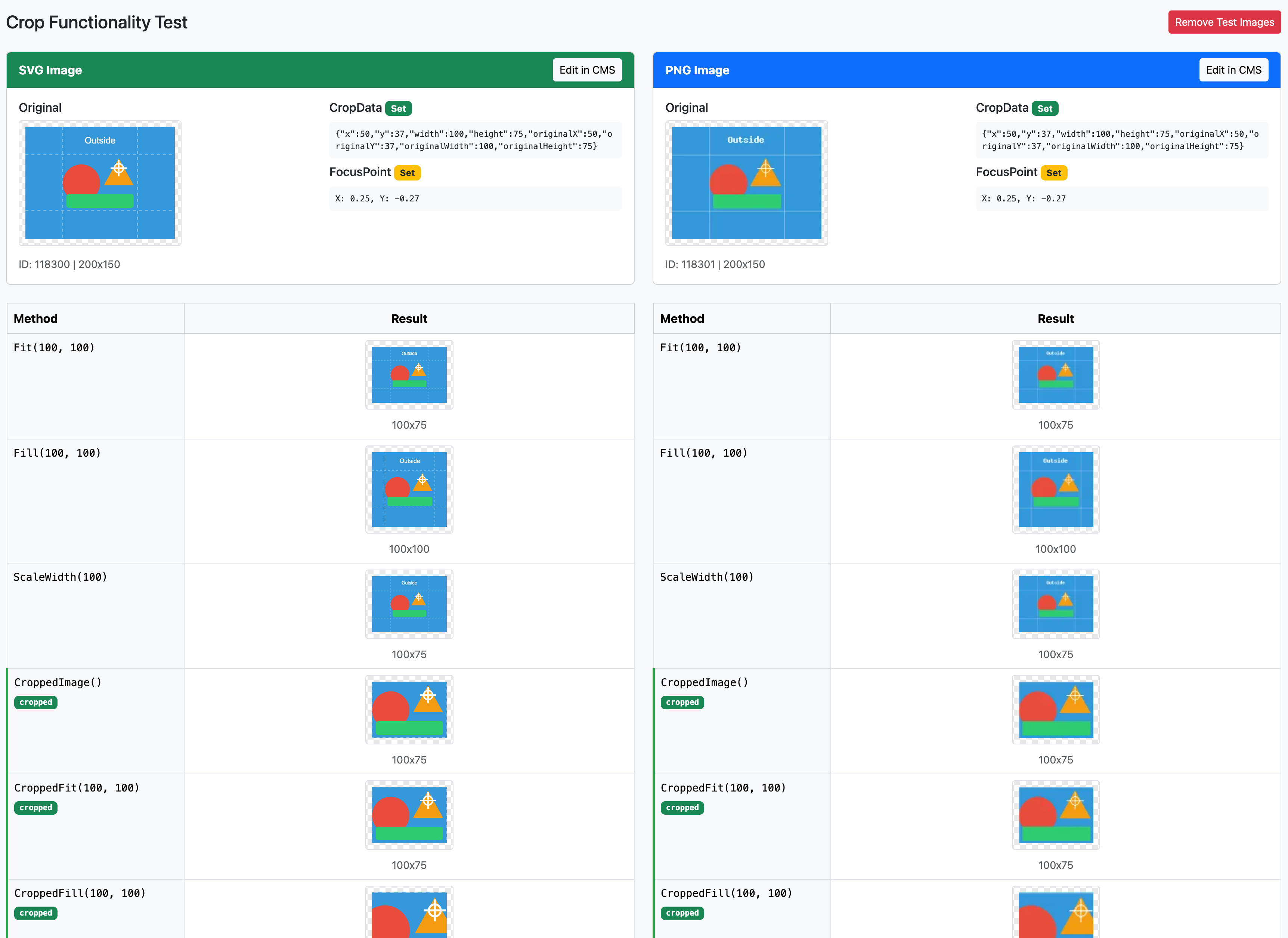

Development tool: /dev/crop-compare

A visual comparison page at /dev/crop-compare renders every Cropped* method next to the plain one, for an SVG and a PNG side by side. It is open to anyone in dev mode; otherwise only to administrators (ADMIN or ALL_DEV_ADMIN). The SVG sample needs restruct/silverstripe-svg-images; without it, installing the test images installs the PNG only and the page shows the PNG column alone.

The tool:

• Tests all Cropped* methods (CroppedImage, CroppedFill, CroppedFocusFill, etc.)
• Compares regular manipulations with Cropped* versions
• Shows badges indicating which methods use CropData and/or FocusPoint
• Includes bundled test images with pre-configured CropData and FocusPoint
• Works with custom image IDs for testing your own images (one SVG and one PNG ID)

Test image features:

• Lines mark the crop boundaries (dashed on the SVG)
• "Outside" is printed above the crop region, so it must be gone from every cropped result
• White crosshair marks the FocusPoint location
• Orange triangle is near the FocusPoint - should stay visible in FocusFill crops
• Red circle is left of center - may be cropped in narrow FocusFill

Related modules

• jonom/focuspoint - Required. Provides the FocusPoint field and basic focus-aware cropping
• restruct/silverstripe-svg-images - Optional. Enables SVG support, including the crop region on SVGs
• restruct/silverstripe-simpler - Required. Provides the DOMNodesInserted event the cropper script initialises on

Running the tests

The suite needs a booted Silverstripe project. Install the module into one through a path repository with "symlink": true (the tests/ folder is excluded from dist installs), map Restruct\ImageCropper\Tests\ to vendor/restruct/silverstripe-focuspointcropper/tests/ in its autoload-dev, then:

# Silverstripe 5 (PHPUnit 9): the path must come first for flush=1 to work
vendor/bin/phpunit vendor/restruct/silverstripe-focuspointcropper/tests flush=1
# Silverstripe 6 (PHPUnit 11): flush through the environment instead
SS_PHPUNIT_FLUSH=1 vendor/bin/phpunit vendor/restruct/silverstripe-focuspointcropper/tests

.github/workflows/ci.yml builds such a project per Silverstripe major. Browser tests (Playwright) for the crop field and /dev/crop-compare live in tests/browser/; the README screenshots are generated from there too, see tests/browser/screenshots/README.md.

License

BSD-3-Clause, see LICENSE, as every earlier release declared.
