README

English · Polski

A module that monitors a Magento store from the inside. It exposes a single secret health endpoint, which Calmfox Watch monitoring polls, and implements the same contract as the WordPress plugin and the Neos and Sylius packages: the same response shape, the same signature, the same pairing flow.

The model is "pull": the module sends nothing on its own apart from registration, pairing and disconnection. Everything else is answers to the questions monitoring asks.

Screenshots

The admin UI ships in English and Polish; the screenshots show the Polish one.

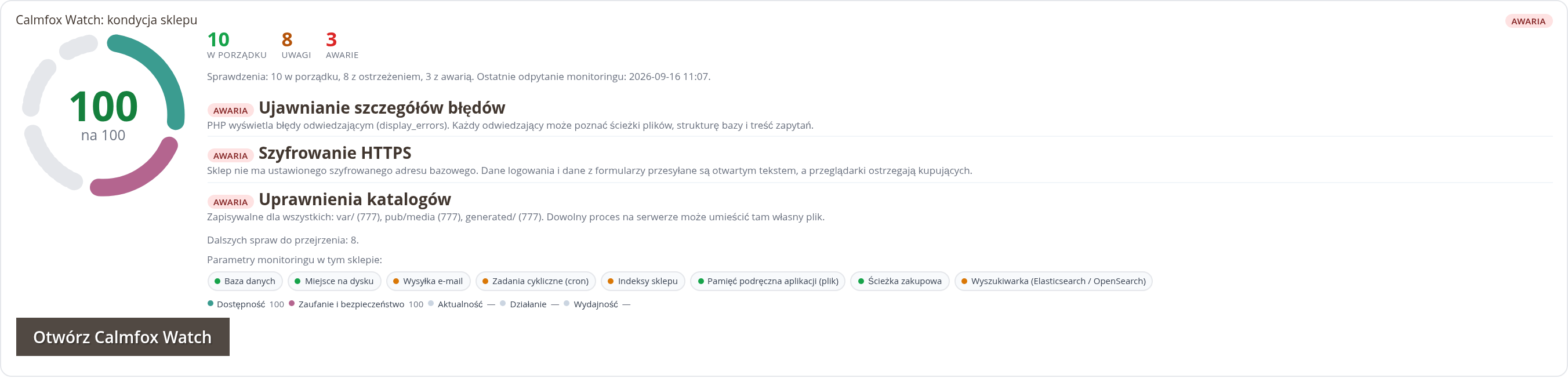

The health tile on the admin dashboard: score ring, check counters and the three most urgent issues.

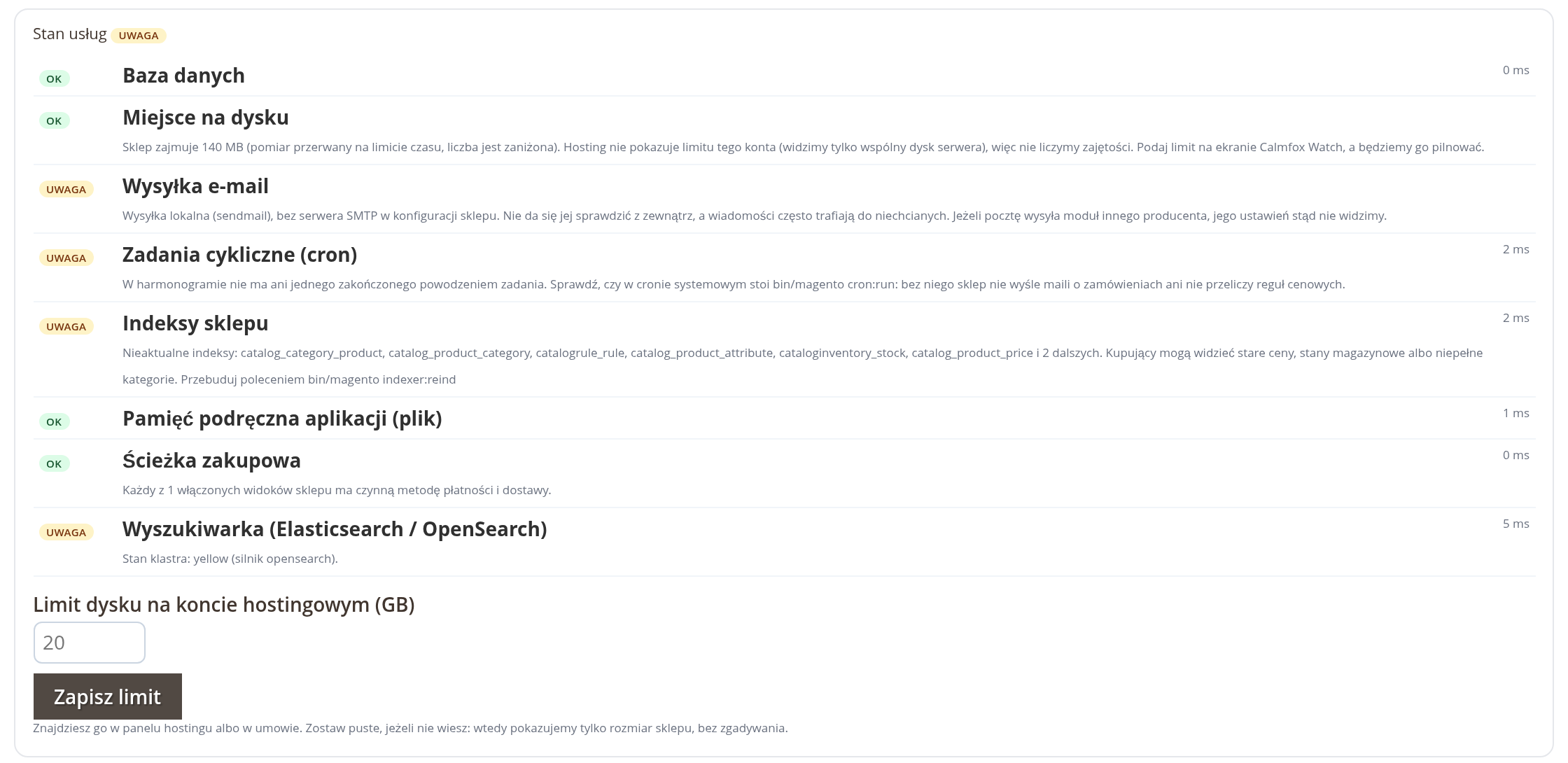

Service health on the module screen.

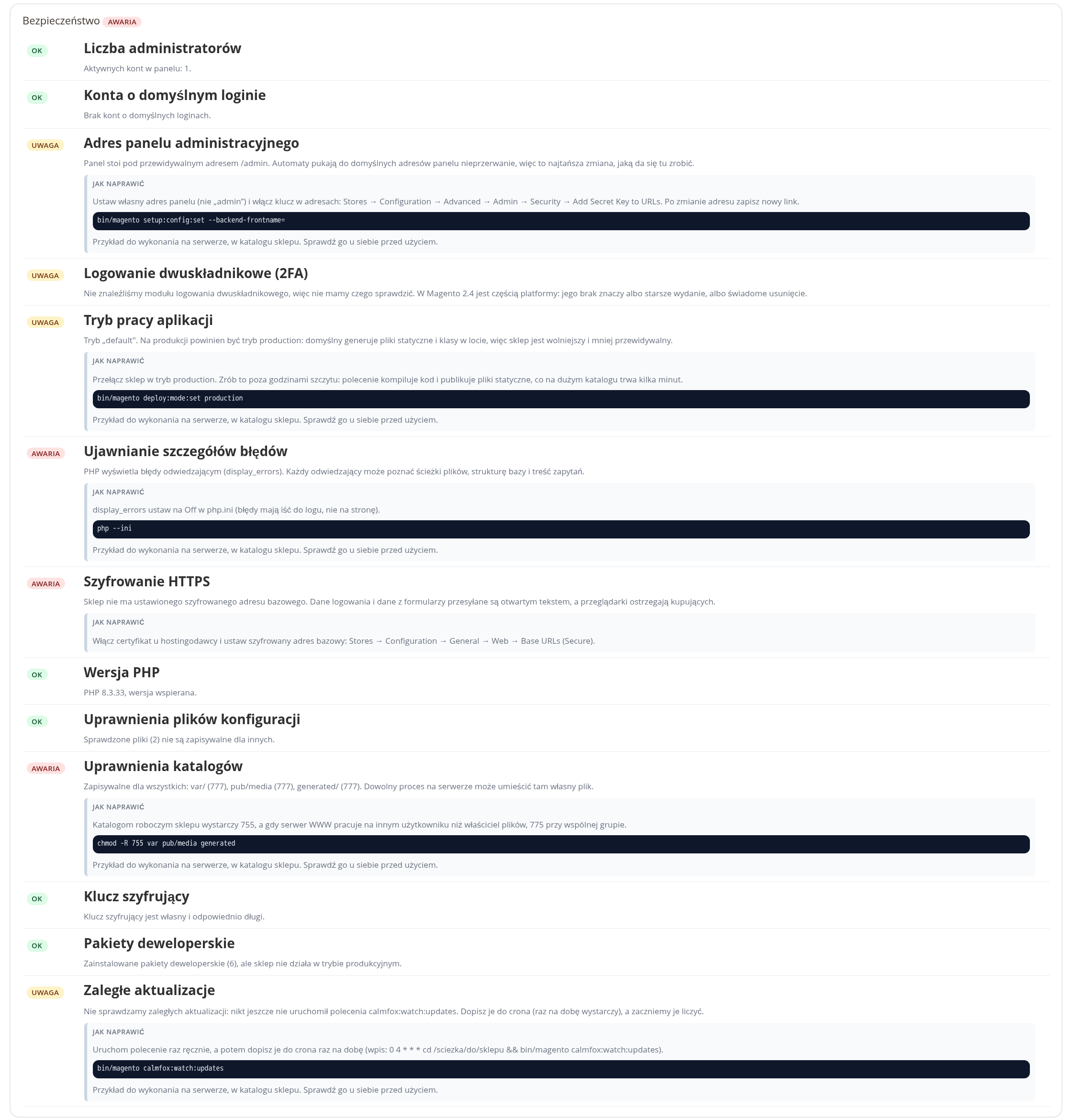

Security hygiene checks, each with a ready-to-copy fix.

Requirements

Component	Range
Magento	2.4.x (Open Source and Adobe Commerce)
PHP	8.1 and above
Deploy mode	any, but the security section judges it against production standards

The module does not require RabbitMQ, Redis or a search engine: it checks what the store actually has and does not ask about the rest.

Installation

The module is available in the public Composer package index (Packagist) as calmfox/watch-magento. Where a store cannot use Packagist, it is installed from the calmfox-watch-magento.zip archive provided by the Calmfox Watch panel (Integrations, the "Download for Magento 2" button). The archive contains a single directory: calmfox-watch/.

Option 1: Composer (recommended)

composer require calmfox/watch-magento

bin/magento module:enable Calmfox_Watch
bin/magento setup:upgrade
bin/magento setup:di:compile     # production mode only
bin/magento cache:flush

Updating: composer update calmfox/watch-magento, then bin/magento setup:upgrade and a cache flush.

Option 2: the archive in the app/code directory

mkdir -p app/code/Calmfox
unzip calmfox-watch-magento.zip -d app/code/Calmfox
mv app/code/Calmfox/calmfox-watch app/code/Calmfox/Watch

bin/magento module:enable Calmfox_Watch
bin/magento setup:upgrade
bin/magento setup:di:compile     # production mode only
bin/magento cache:flush

The name of the target directory is not arbitrary here. Magento loads the app/code/*/*/registration.php files (the list of patterns lives in app/etc/registration_globlist.php), and the module's registration.php registers it as Calmfox_Watch. Composer plays no part at all in this option.

Option 3: Composer, from the unpacked archive

For deployments where non-core code is supposed to live in vendor:

mkdir -p packages && unzip calmfox-watch-magento.zip -d packages
composer config repositories.calmfox-watch '{"type":"path","url":"./packages/calmfox-watch","options":{"symlink":false}}'
composer require calmfox/watch-magento:@dev

bin/magento module:enable Calmfox_Watch
bin/magento setup:upgrade
bin/magento setup:di:compile     # production mode only
bin/magento cache:flush

Three places where it is easy to trip up:

• "symlink": false tells Composer to copy the files. Without it, the directory in vendor is nothing but a symlink to packages and will vanish together with it.
• The unpacked directory stays in the project (and in the repository, if the deployment runs from git). Composer reads it on every composer install, so deleting it will break the next deployment.
• @dev after the module name is required. The archive's composer.json deliberately has no version field (Composer derives the version from the repository tag, and the archive has no tag), so a path repository reports it as dev-main.

Updating from the archive: unpack the newer one into the same place (with option 2, replace the files in app/code/Calmfox/Watch), then run bin/magento setup:upgrade and flush the cache.

The health endpoint must be public

The module adds the GET /calmfox-watch/health route. Monitoring polls us, not the other way round, so there is no session it could present: authorisation is a secret in the key parameter, compared with hash_equals.

Storefront routes in Magento are public by nature, so usually there is nothing to do. Check three things, though, because these are what most often block the endpoint:

• The web application firewall (WAF) and web server rules: an unusual path with a long parameter sometimes gets rejected automatically.
• Full page cache and Varnish: the response carries a Cache-Control: no-store header, so neither Magento's built-in cache nor the default Varnish configuration will store it. If another caching layer sits in front of the store (a CDN, a third-party proxy), exclude the /calmfox-watch/ path from it: monitoring should get the state as of now, not as of an hour ago.
• Maintenance mode: during a deployment Magento returns 503 for everything. That is correct behaviour and monitoring will see it, so it is worth scheduling a maintenance window in the Calmfox Watch panel.

The module screen in the Magento admin and the calmfox:watch:status command run a loopback self-check and will say outright if the endpoint is unreachable from the server itself.

Connecting to the Calmfox Watch panel

Magento admin: the Calmfox Watch item in the main menu bar, right after the dashboard (the Calmfox_Watch::watch permission, so a role without this resource will not see the screen). The admin dashboard also gets a health tile: the status, check counts and at most three of the most urgent issues, with a link to the full screen. The tile is visible only to a role with the same permission.

Three ways, all ending the same:

1. Connect via watch.calmfox.net: we go out to the Calmfox Watch panel, you sign in or create an account there, and we come back here with an installation key.
2. The Free plan from the module screen: you enter an e-mail address and the account is created right away.
3. The command line, when the deployment is scripted:

# new account on the Free plan
bin/magento calmfox:watch:register [e-mail]

# or attach to an existing site in the panel (key from the Integrations screen)
bin/magento calmfox:watch:pair fxp_live_0123456789abcdef

The store address is taken from the configuration (web/secure/base_url, with web/unsecure/base_url as the fallback), so the commands also work in the CLI, where there is no HTTP request. Both print the health endpoint they report to the Calmfox Watch panel, so you can see straight away whether it is correct.

Magento admin on a separate domain: the "Connect via Calmfox Watch" button disappears. The return from the Calmfox Watch panel carries the installation key in plain form, so we may only return to the Magento admin of the domain being connected. With the admin under a different address, pairing with a key remains, and it works just the same.

Configuration

Everything has sensible defaults and there is no separate section in Stores → Configuration. This is a decision, not an oversight: the API address and the state directory must be known even when the database does not respond, and that is exactly the moment monitoring is supposed to be working.

They are changed with an environment variable or an entry in app/etc/env.php:

return [
    // ...
    'calmfox_watch' => [
        // API address. Environment variable: CALMFOX_WATCH_API_URL.
        'api_url' => 'https://watch.calmfox.net',

        // State directory. Environment variable: CALMFOX_WATCH_STATE_DIR.
        // Defaults to var/calmfox-watch.
        'state_dir' => '/var/www/shop/shared/calmfox-watch',

        // Composer command for calmfox:watch:updates.
        'composer_binary' => 'composer',
    ],
];

The hosting account's disk limit is set on the module screen in the Magento admin, because it is the only number the server does not know, while the customer has it in the contract or in the hosting panel.

State, the secret and directory-per-release deployments

The state (the health endpoint secret, the pairing marker, the version history, the computed update counts) lives in a file, not in the database and not in the Magento configuration: var/calmfox-watch/state.json, permissions 600, atomic writes.

There are two reasons and both are practical. The contract one: with the database down, the health endpoint is supposed to answer db: fail with a 503 code, not go silent. The Magento one: core_config_data goes through the configuration cache, which a deployment flushes halfway through its work.

Note for "new directory for every release" deployments (Deployer, Capistrano, pipeline deployment, a current symlink): the state directory MUST be shared between releases. Otherwise every deployment creates a new secret, the health endpoint remembered by the Calmfox Watch panel stops working and monitoring reports a silent store. The version change history also starts from scratch then.

var/ is usually shared anyway. If it is not, set CALMFOX_WATCH_STATE_DIR=/var/www/shop/shared/calmfox-watch.

Replacing the secret (the "Replace the key" button) works with a 15-minute window: the new secret takes effect immediately and the previous one is honoured for another quarter of an hour, so a failed switch-over in the Calmfox Watch panel does not break monitoring.

Scheduled tasks

The module adds one job of its own to the Magento scheduler (calmfox_watch_reconcile, 4:17 at night): a cheap reconciliation of the package version snapshot, with no network access. Thanks to it, a deployment made outside the store leaves a trace in the history even when monitoring happened not to ask for the security section.

Counting pending updates is deliberately not there: it requires Composer and a trip out to the package repositories, and the store process has no business going there. It goes into the system cron, next to the actual Magento cron:

# Magento cron (this is what sends order e-mails and recalculates price rules)
* * * * *  cd /var/www/shop && php bin/magento cron:run >/dev/null 2>&1

# pending package updates for Calmfox Watch (once a day, needs network access)
15 3 * * * cd /var/www/shop && php bin/magento calmfox:watch:updates -q

The magento_cron check watches the first of these entries: it asks the Magento scheduler when the last job finished successfully.

Commands

Command	What it is for
calmfox:watch:status	Connection state, the health endpoint, both check sections
calmfox:watch:register <email>	Creates a Free account and connects the store
calmfox:watch:pair [token]	Connects to an existing site in the Calmfox Watch panel
calmfox:watch:disconnect	Ends inside monitoring and tells the Calmfox Watch panel about it
calmfox:watch:updates	Counts pending updates, meant for the system cron
calmfox:watch:health [--section=security]	Prints the payload locally, with no network access

Removing the module? Run calmfox:watch:disconnect first. Calmfox Watch treats silence as a signal and will open an incident after three failed polls, so it is better to tell it outright "I'm done".

What we check

The health section (monitoring asks every minute)

Identifier	What it checks
db	A control query over the Magento connection, with timing. No database means fail, not an exception.
disk	Write permission to var/, pub/media and generated/, the installation size, usage against the account limit you entered.
smtp	A connection to the mail server (TCP, the 220 greeting, EHLO). This is a CONNECTION test, not a delivery test.
magento_cron	When the last scheduled job finished successfully, how many errors and missed jobs there were in the last 24 hours.
indexers	Which indexes are out of date. A store with an outdated index works and shows yesterday's prices.
app_cache	Writing and reading a control key in the application cache, together with the backend name.
checkout	Whether a purchase is possible in every enabled store view: a payment method (other than Zero Subtotal) and a shipping method.
search_engine	The state of the Elasticsearch or OpenSearch cluster. In 2.4, search and listings go down without it.
queue	Backlog in the database queues. Optional: with an empty table (or RabbitMQ) the check is not created at all.

The security section (monitoring asks once a day)

admin_count, admin_login, admin_path, two_factor, app_mode, debug_display, https, php_version, config_perms, dir_perms, crypt_key, dev_packages, pending_updates.

Four on this list are Magento-specific: the admin URL together with the secret key in URLs (admin_path), two-factor authentication (two_factor), the deploy mode (app_mode) and the encryption key from app/etc/env.php, which encrypts the payment gateway credentials (crypt_key).

This is basic hygiene, not an audit. We do not scan for malicious code, we do not compute checksums of the platform files and we do not make backups.

What we deliberately do not do

• We do not send a list of packages with versions. site.updates is numbers only, because an inventory of "what, and in which version" is a ready-made map of holes for an attacker. Names travel only where they are the essence of the feature: in the version change history and as the set of ENABLED modules (signals.activePlugins, without versions). That second exception is deliberate and has a price: whoever obtains the secret health endpoint will see the list of modules. Without names, an event about a disabled module would read "something changed", and then there is no way to react to it.
• We do not pretend there are automatic updates. Magento has none, so the signals.autoUpdates field is not sent at all, instead of carrying a value that would mean "checked".
• We do not send logins. What travels instead is the number of admin accounts and a one-way fingerprint of their set, salted with the installation secret. The Calmfox Watch panel detects a CHANGE in the set, not identities.
• We do not look into sales data. The checkout check looks only at the store view configuration, never at orders or revenue.
• We do not guess numbers we do not know. Until someone has run calmfox:watch:updates, the updates field is not sent at all. Zero would mean "checked, nothing to update", and that would be untrue.
• We do not pretend to see mail sent by another vendor's module. We know only the system/smtp settings, and that is how we describe it.

Custom checks

Services only the store owner knows about (a warehouse integration, a bridge to the accounting system, a price synchronisation daemon) are plugged in with your own class and a single entry in your module's etc/di.xml:

namespace Vendor\Shop\Monitoring;

use Calmfox\Watch\Check\HealthCheckInterface;
use Calmfox\Watch\Core\CheckResult;

class WarehouseCheck implements HealthCheckInterface
{
    public function run(): ?CheckResult
    {
        $start = microtime(true);
        $socket = @fsockopen('127.0.0.1', 5672, $errno, $error, 2);
        $ms = (int) round((microtime(true) - $start) * 1000);

        if (!\is_resource($socket)) {
            return CheckResult::fail('warehouse', 'Warehouse integration', 'The service is not accepting connections.', $ms);
        }
        fclose($socket);

        return CheckResult::ok('warehouse', 'Warehouse integration', null, $ms);
    }
}

<virtualType name="Calmfox\Watch\Model\HealthRunner" type="Calmfox\Watch\Check\CheckRunner">
    <arguments>
        <argument name="checks" xsi:type="array">
            <item name="warehouse" xsi:type="object">Vendor\Shop\Monitoring\WarehouseCheck</item>
        </argument>
    </arguments>
</virtualType>

The entries are merged with ours, so the above ADDS a check. An entry with a name we already use overrides ours: that is how you switch off a single check when it makes no sense in a given store.

Two rules, both from the contract:

1. Return null when the check does not apply to this installation. We do not send "ok" about something that is not there.
2. Keep a short, hard timeout. The health endpoint answers every minute and must not bog the store down.

An identifier from outside the parameter catalogue will reach the Calmfox Watch panel with the label from the payload and the note "service added by a custom extension".

Version change history

Magento has no update hook: modules come in through Composer, usually from another machine, and setup:upgrade only applies database changes. That is why the module compares snapshots of vendor/composer/installed.php (plus the PHP version) when building the security section, in the nightly job and on calmfox:watch:updates.

Consequences you need to know about:

• The at timestamp is the time the change was detected, not the time of the deployment. They usually differ by minutes. For a statement like "the outage started after module X was updated" that is enough; for accounting for deployments to the second it is not.
• The history starts when the module is installed. Earlier changes cannot be reconstructed, because there is nothing to reconstruct them from.
• A change of the release metapackage, magento/framework or PHP is recorded as core, the remaining packages as plugin. Magento themes are ordinary packages, so they have no separate category. The buffer holds 200 entries.

Privacy

What travels to Calmfox: the store domain, the e-mail address you provided (only when creating an account) and the diagnostic data described above: check statuses with descriptions, the platform and PHP versions, the pending update counts, the number and fingerprint of admin accounts and the package version change history. No store content, orders, customer data, logins or passwords.

Tests

The module's core (Core/) is free of Magento: it is plain PHP classes. Thanks to that, the contract with the Calmfox Watch panel can be tested without a container, a database or an installed store.

The tests ship their own PSR-4 autoloader (tests/bootstrap.php), so the module needs no composer install of its own. Any PHPUnit 10 or later will do:

phpunit -c phpunit.xml.dist

Among other things, the tests guard: the ok/warn/fail aggregation, rejection of a wrong key, validity of the previous secret within the rotation window, single use of the connect-via-panel marker, agreement of the signature with the verification on the Calmfox Watch side, omission of the updates field when there is no data, comparison of version snapshots and parsing of Magento's mail settings.

Sample responses for both sections live in docs/sample-health.json and docs/sample-security.json. They are produced by the same code that answers monitoring, and a test makes sure they do not drift apart. To regenerate them after a deliberate contract change:

CALMFOX_WRITE_SAMPLES=1 phpunit --filter SamplePayloads

Limits of protection

We sign the response with the installation key (HMAC-SHA256 over a nonce, the generation time and the exact bytes of the body). This cuts off the cheap attacks: a planted static file, a response served from a cache, a replay from before the store was taken over. Whoever has full control of the server also has the secret and can sign a lie. The signature is no substitute for recovering the server, and that is how we talk about it.

Licence

MIT, see LICENSE.
