README

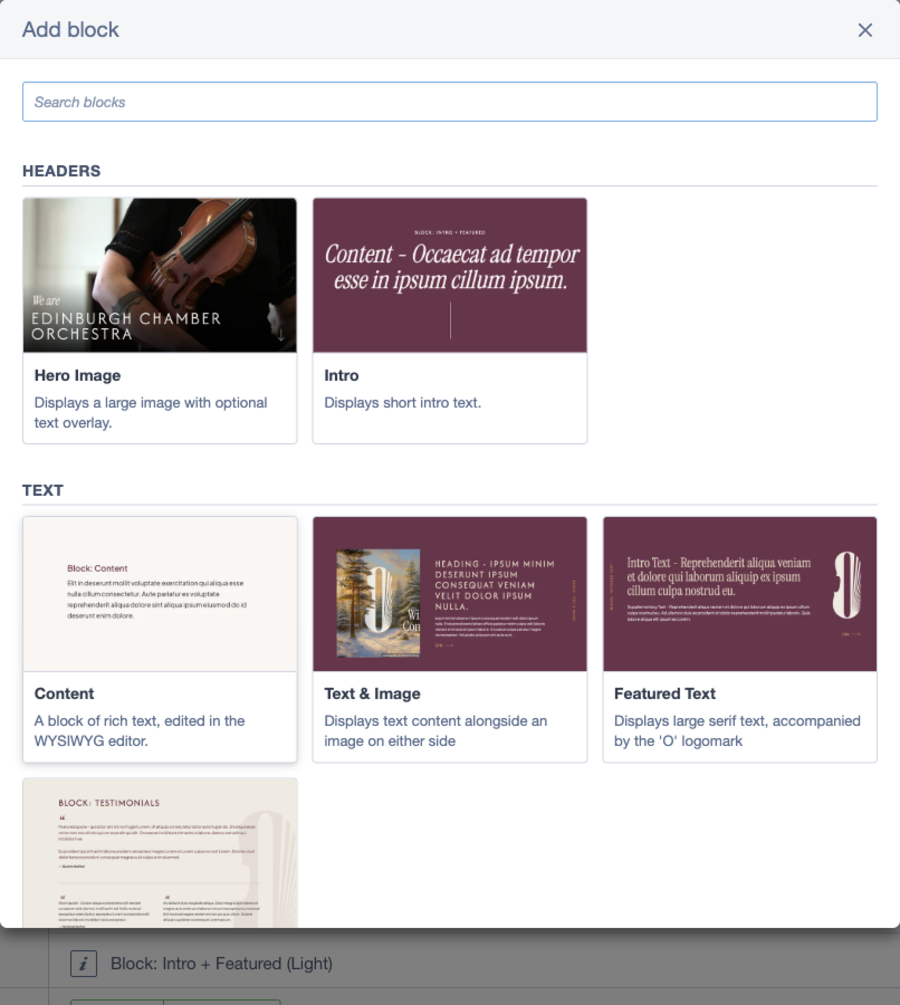

Replaces Elemental's "Add block" popover with a modal that shows each block as a screenshot card with its name and description, organised into groups. The search box still works, and now matches descriptions and group names too.

Screenshots are matched by filename, so adding one is drag-and-drop — no code, no config. Blocks without a screenshot fall back to an icon tile, so the picker is useful straight away.

Requirements

Silverstripe CMS 5 or 6
dnadesign/silverstripe-elemental 5 or 6
PHP 8.1+

Installation

composer require purplespider/silverstripe-visual-block-picker

Then flush: visit any page with ?flush=1, or run sake dev/build --flush.

That's it — there's no build step and nothing to configure to get started.

Adding screenshots

Create public/images/blocks/ and drop in an image named after each block class:

public/images/blocks/HeroBlock.png
public/images/blocks/TextImageBlock.webp

Flush, and the cards appear. Recognised extensions in order of preference: webp, png, jpg, jpeg, svg. Cards use a 16:9 area with object-fit: cover, so landscape images around 640×360 work well.

If two block classes in different namespaces share a short name, use the fully qualified name with hyphens instead of backslashes. This form is checked first, so it wins:

public/images/blocks/App-Blocks-HeroBlock.png

The module also looks in themes/<theme>/dist/images/blocks/. If you use that location, add it to your theme's extra.expose in composer.json and run composer vendor-expose, or the images won't be reachable. public/images/blocks/ needs no exposing, which is why it's the default.

Grouping blocks

Groups render in the order configured, and cards render in the order you list them, so each group can lead with the block people reach for most.

PurpleSpider\VisualBlockPicker\Services\BlockPickerConfigProvider:
  groups:
    - title: 'Headers'
      blocks:
        - 'App\Blocks\HeroBlock'
        - 'App\Blocks\IntroBlock'
    - title: 'Media'
      blocks:
        - 'App\Blocks\GalleryBlock'
        - 'App\Blocks\VideoBlock'

Anything you don't list falls into a trailing group named by ungrouped_title, sorted alphabetically. Configure no groups at all and the picker renders one flat grid with no headings.

Per-page restrictions (allowed_elements and friends) keep working untouched — the picker joins its config onto the list Elemental has already filtered for the page being edited.

Configuration reference

All options sit on PurpleSpider\VisualBlockPicker\Services\BlockPickerConfigProvider unless noted.

Option	Default	Purpose
`groups`	`[]`	Ordered list of `{title, blocks}`
`ungrouped_title`	`'Other'`	Heading for unlisted blocks. Empty string to drop it
`exclude_classes`	`[]`	Block classes to hide from the picker entirely
`show_title_icons`	`false`	Show each block's Elemental icon beside its name
`screenshot_dirs` ^†	`['public/images/blocks']`	Where to look, first match wins
`screenshot_extensions` ^†	`webp, png, jpg, jpeg, svg`	Extensions to probe, in order

^† on PurpleSpider\VisualBlockPicker\Services\ScreenshotResolver

show_title_icons only controls the small icon next to the name. The icon tile shown for blocks with no screenshot always renders.

Descriptions

Descriptions come from each block's class_description:

private static $class_description = 'Displays text alongside an image.';

Elemental's older $description static is deprecated and is not read.

For blocks you don't own, you can set class_description from YAML — but note a translation always wins over it, and some modules ship one (elemental does for ElementContent). If YAML seems to have no effect, override the translation instead in app/lang/en.yml:

en:
  DNADesign\Elemental\Models\ElementContent:
    CLASS_DESCRIPTION: 'A block of rich text.'

Check which you're getting with singleton($class)->i18n_classDescription().

Caching

The payload is cached and rebuilt on ?flush. If you add a screenshot or change a group and see no difference, flush. Caching isn't optional here: Silverstripe builds this config on every CMS page load.

Note that flushing from the CLI won't always clear it for the browser — PHP-FPM and CLI have separate opcaches. Use ?flush=1 in the browser if a change doesn't show.

Development

composer install
vendor/bin/phpunit
vendor/bin/phpcs

The client assets in client/dist are hand-written and committed deliberately — there is no webpack step. They use the globals Silverstripe's admin bundle already exposes (React, Reactstrap, Injector), so the module participates in the CMS's React tree without a build.

Licence

BSD-3-Clause
