mage2kishan / module-mage-pos

1.0.9 2026-10-01 22:13 UTC

Requires

• php: ~8.1.0||~8.2.0||~8.3.0||~8.4.0
• mage2kishan/module-core: ^1.0
• magento/framework: ^103.0
• magento/module-backend: ^102.0
• magento/module-catalog: ^104.0
• magento/module-customer: ^103.0
• magento/module-payment: ^100.4
• magento/module-quote: ^101.2
• magento/module-sales: ^103.0
• magento/module-ui: ^101.2

MIT

• Kishan Savaliya

• barcode
• pos
• receipt
• magento2
• magento2-module
• retail
• omnichannel
• point-of-sale
• epos
• till
• hyva
• luma
• hyva-compatible
• panth
• cash-register
• magento-pos
• pos-system
• offline-pos

Published on Packagist.org on 2026-10-01 22:13 UTC

README

Panth MagePos (Panth_MagePos) adds an in-store point of sale to Magento 2. Cashiers use a standalone browser terminal served by the store at /pos; every sale is placed as a regular Magento order from a Magento quote. Registers, cashier accounts, roles, payment methods, quick keys, sessions and sales reports are managed in the Magento admin. The terminal page is rendered by the module itself, outside the storefront theme layout, so it does not depend on Luma or Hyva.

Product page: kishansavaliya.com/magento-2-pos.html

Features

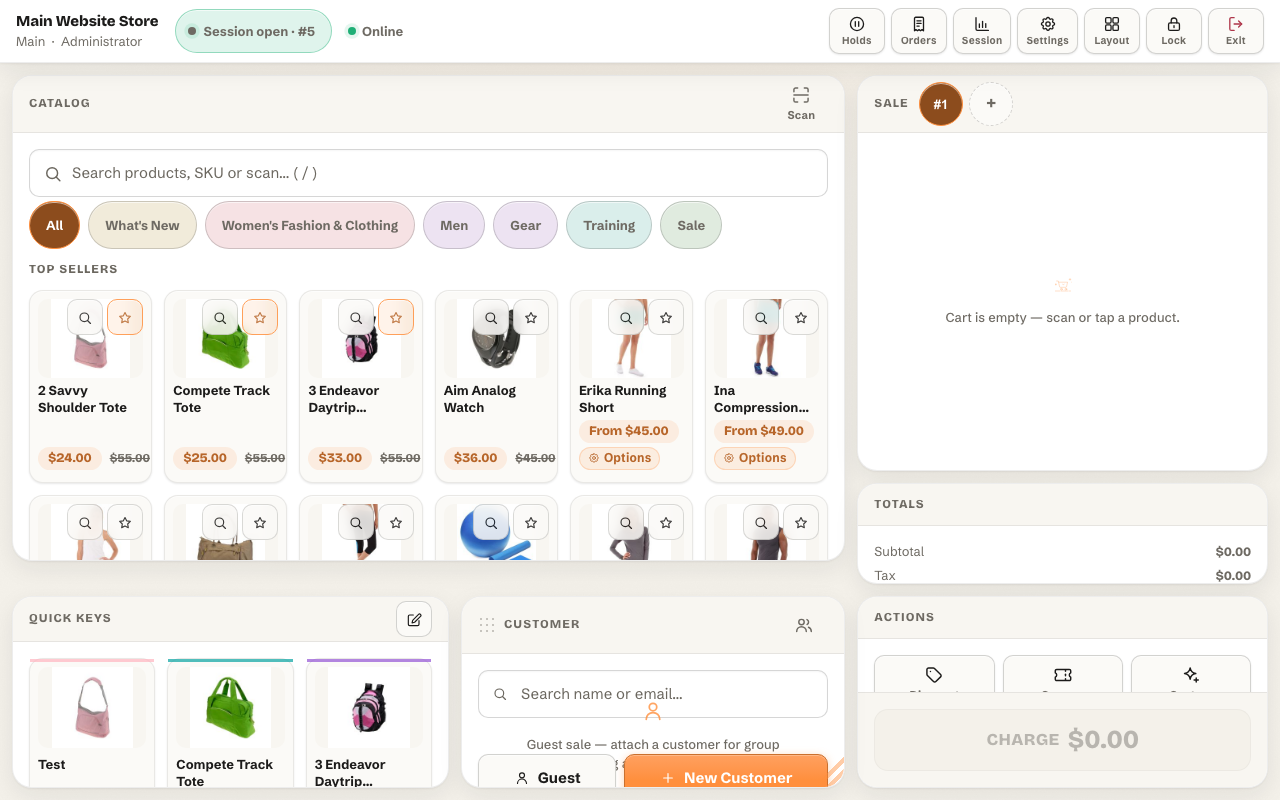

• Standalone terminal at /pos (Alpine.js and module CSS), with a login screen, light and dark themes and a per-user layout editor with the presets classic, mirrored, catalog-max and compact.
• POS users separate from admin users and customers: username and password login, PIN unlock after an idle auto-lock, lock state kept in the server session. Passwords and PINs are stored as password_hash() hashes.
• Roles with a maximum discount percent and the permissions can_price_override, can_refund, can_open_close, can_cash_inout, can_custom_product, can_edit_layout and can_view_reports.
• Register sessions with opening float, cash in/out movements, X report, and Z report on close with expected cash, counted cash and over/short.
• Product search, category browse, bestsellers, product options for configurable, grouped, bundle and custom-option products, barcode lookup by a configurable attribute (keyboard-wedge scanners, or camera scanning where the browser provides BarcodeDetector).
• Quick keys (product tiles with label, colour, page and position, global or per register), managed in admin or pinned from the terminal.
• Multiple carts, hold and restore, customer search and creation, cart notes.
• Cart and line discounts (percent or fixed), price override and Magento coupon codes, capped by the cashier role on the server.
• Custom sale lines backed by a placeholder product (pos-custom-sale, created on install).
• Split payments across cash, offline and online payment methods; change is calculated for cash rows. Online methods show a payment link and QR code and leave the order in pending payment.
• Receipts in 80 mm print layout (the Discount row includes the POS cart discount), email receipt (manual or automatic), receipt numbers in the form {register_code}-{session_id}-{seq}.
• Refunds from the terminal that create a Magento credit memo, with optional restock and a cash movement.
• Offline mode: catalog snapshot in IndexedDB, sales queued on the device and pushed when the connection returns, de-duplicated by a client UUID.
• Admin sales report (orders, gross, average order, by payment method, cashier, register and hour) and POS Register / POS Cashier columns in the sales order grid.
• Optional Multi-Source Inventory (MSI) support for salable quantity and restock by register source; falls back to legacy stock when MSI is not installed.

Compatibility

Component	Supported versions
Magento Open Source	2.4.4 to 2.4.8
Adobe Commerce	2.4.4 to 2.4.8
PHP	~8.1.0, ~8.2.0, ~8.3.0, ~8.4.0

Composer constraints: magento/framework ^103.0, magento/module-sales ^103.0, magento/module-quote ^101.2, magento/module-catalog ^104.0, magento/module-customer ^103.0, magento/module-payment ^100.4, magento/module-backend ^102.0, magento/module-ui ^101.2. It also requires mage2kishan/module-core ^1.0 (Panth_Core).

Requirements

• A browser on the till device with JavaScript and IndexedDB (IndexedDB is used for offline mode).
• Camera barcode scanning needs a browser that provides the BarcodeDetector API; keyboard-wedge scanners type into the search field and need no browser support.
• Receipts are printed through the browser print dialog. The print stylesheet targets 80 mm paper (72 mm printable width).

Installation

composer require mage2kishan/module-mage-pos
bin/magento module:enable Panth_Core Panth_MagePos
bin/magento setup:upgrade
bin/magento setup:di:compile
bin/magento cache:flush
bin/magento setup:static-content:deploy -f

Run setup:di:compile only in production mode. Static content deployment is needed because the module ships frontend assets in view/frontend/web.

Check the module status:

bin/magento module:status Panth_MagePos

The install data patches create the roles Administrator (100% discount cap, all permissions) and Cashier (10% cap, no refund, no price override, no layout editing, no reports), a register Main Register (code main), the payment methods cash, card (offline, reference required) and payment_link (online), and the pos-custom-sale product. They also create a POS user admin that is disabled and has random, unusable password and PIN hashes. Set a password and PIN and enable that user (or create another) under POS Users before anyone can log in to the terminal.

Configuration

Admin path: Stores > Configuration > Panth Extensions > Point of Sale (MagePos). Config paths start with panth_pos/. The same page is linked from the admin menu Panth Infotech > Point of Sale (MagePos) > Configuration.

General (panth_pos/general)

Field	Type	Default	Path	Notes
Enable Module	Yes/No	Yes	panth_pos/general/enabled	When No, /pos returns a "disabled" page and every pos/* JSON endpoint answers with the error code disabled.
Idle Auto-Lock (minutes)	Text	5	panth_pos/general/idle_lock_minutes	0 disables auto-lock. Shown when Enable Module = Yes.
Default Register ID	Text	(empty)	panth_pos/general/default_register	Preselected register on the login screen. Shown when Enable Module = Yes.

Catalog & Barcode (panth_pos/catalog)

Field	Type	Default	Path
Barcode Attribute Code	Text	sku	panth_pos/catalog/barcode_attribute
Search Page Size	Text	20	panth_pos/catalog/search_page_size
Show Out of Stock Products	Yes/No	No	panth_pos/catalog/show_out_of_stock
Offline Catalog Cache Limit	Text	2000	panth_pos/catalog/offline_catalog_limit

Customers (panth_pos/customer)

Field	Type	Default	Path
Guest Checkout Email	Text	[e-mail]	panth_pos/customer/guest_email
Default Customer Group	Select	1	panth_pos/customer/default_customer_group

Custom Products (panth_pos/custom_product)

Field	Type	Default	Path
Placeholder Product SKU	Text	pos-custom-sale	panth_pos/custom_product/sku
Default Tax Class	Select	2	panth_pos/custom_product/default_tax_class

Checkout (panth_pos/checkout)

Field	Type	Default	Path
Order Note Prefix	Text	POS	panth_pos/checkout/order_note_prefix
Auto-Invoice Offline Payments	Yes/No	Yes	panth_pos/checkout/auto_invoice_offline
Require Open Register Session	Yes/No	Yes	panth_pos/checkout/require_session

When Require Open Register Session is No and no session is open, checkout opens a session automatically on the selected or default register with a zero float.

Receipt (panth_pos/receipt)

Field	Type	Default	Path
Receipt Logo URL	Text	(empty)	panth_pos/receipt/logo
Receipt Header Text	Textarea	(empty)	panth_pos/receipt/header
Receipt Footer Text	Textarea	Thank you for your purchase!	panth_pos/receipt/footer
Show Tax Breakdown	Yes/No	Yes	panth_pos/receipt/show_tax_breakdown
Auto-Email Receipt	Yes/No	No	panth_pos/receipt/auto_email

Header and footer text set on a register override these values.

Offline Mode (panth_pos/offline)

Field	Type	Default	Path
Enable Offline Mode	Yes/No	Yes	panth_pos/offline/enabled

Register Sessions (panth_pos/session)

Field	Type	Default	Path
Auto-Close Sessions After (hours)	Text	24	panth_pos/session/auto_close_hours

This setting is not used in this version. Sessions are not closed automatically and the module has no cron job.

Payment Methods

This group only contains a note. POS tenders are managed in the admin grid, and every POS order is recorded against the internal payment method panth_pos ("POS Payment", payment/panth_pos, not available in storefront checkout).

Admin pages

Admin menu Panth Infotech > Point of Sale (MagePos):

Menu item	Route	What it manages
Launch Terminal	panth_pos/terminal/launch	Redirects to /pos on the default store view.
Registers	panth_pos/register/index	Name, code, store view, status, inventory source, receipt header and footer.
Sessions	panth_pos/session/index	Session list, session detail with cash movements, force close.
POS Users	panth_pos/user/index	Username, name, email, role, status, password, PIN.
Roles	panth_pos/role/index	Maximum discount percent and permission flags (the grid shows a readable summary of the allowed actions).
Payment Methods	panth_pos/method/index	Code, title, type (cash, offline, online), active, sort order, icon, reference required, open drawer, instructions, payment URL template.
Quick Keys	panth_pos/quickkey/index	Product, label, colour, page, position, register. The product must exist and the colour must be a hex value (for example #2563eb).
Reports	panth_pos/report/index	Sales summary filtered by register and date range.
Configuration	system config section panth_pos	Settings above.

Usage

1. Open /pos on the store URL, or use Launch Terminal in the admin.

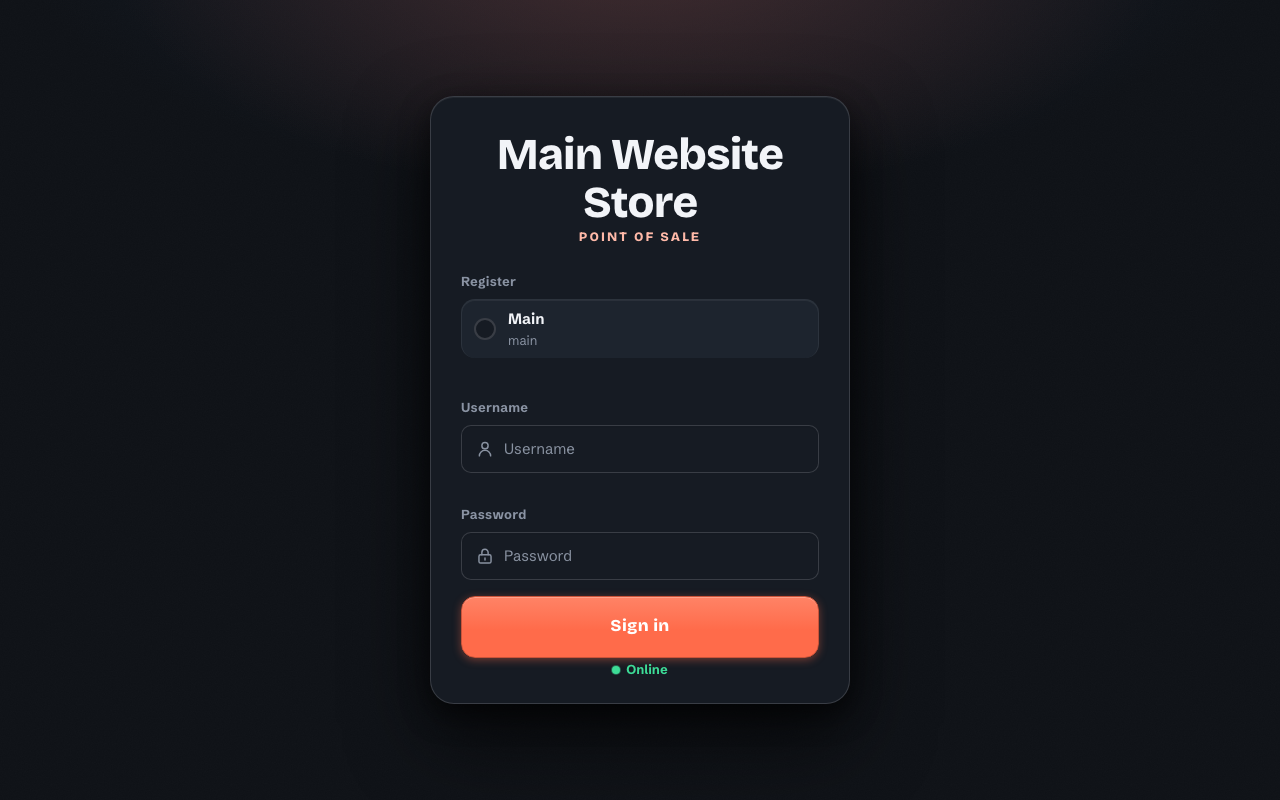

2. Log in with a POS user's username and password and pick a register. After the idle time the screen locks and the cashier unlocks with the PIN. Logout ends the POS session.
3. Open a register session with an opening float (requires can_open_close). Cash in/out needs can_cash_inout.
4. Add products by search, category, bestsellers, barcode or quick key. Configurable, grouped and bundle products and products with custom options open an option picker. Custom lines need can_custom_product; price override needs can_price_override.
5. Apply a cart or line discount (percent or fixed) or a coupon. The server rejects discounts above the role's maximum discount percent.
6. Attach a customer (search or create) or sell as guest using the configured guest email.
7. At checkout, split the total across any active payment methods. The cart is totalled with the store address from Stores > Configuration > General > Store Information (or the default country) and a zero priced shipping method, the same way the order is placed, so the cart total is the amount to pay. The payments must cover the grand total; change is only allowed on cash rows. Offline methods can require a reference. Online methods show the method's payment URL (built from its payment URL template) as a link and QR code, and the order stays in pending payment. The module has no payment page of its own: the payment_link method is created with an empty template, and an empty template (or the old {{base_url}}pos/pay/... default) shows the method's instructions instead of a link. Set the template to your payment provider's URL to show a link and QR code. Online processing can be extended through Panth\MagePos\Api\PaymentProcessorInterface.
8. The order is created from the quote with payment method panth_pos. When no online row is pending and Auto-Invoice Offline Payments is Yes, an offline-captured invoice is created. The order appears under Sales > Orders with the POS Register and POS Cashier columns.
9. Print the receipt (80 mm layout), email it, or reprint it later. The receipt page is served at pos/checkout/receipt and requires the per-order receipt token.
10. Refunds (requires can_refund): search the order by increment ID, customer email or receipt number, choose items and quantities, the refund payment split, restock and a reason. A Magento credit memo is created.
11. Take an X report at any time (requires can_view_reports; the button is hidden for roles without it). Close the session with the counted cash to get the Z report with over/short.

Sessions: the admin Sessions grid and the session detail page can force close an open session (counted cash set to expected cash). Force close is a POST request with the admin form key. Sessions are not closed automatically; close them at the terminal or force close them in the admin.

Offline mode: with Enable Offline Mode = Yes the terminal stores a catalog snapshot (up to Offline Catalog Cache Limit products) in IndexedDB. When the browser goes offline, search uses the local copy and completed sales are queued on the device, then sent to pos/sync/push when the connection returns. Each queued sale has a client UUID so a sale is not created twice. According to the user guide, creating customers, validating coupons and payment-link methods are not available while offline.

Developer Notes

• Module: Panth_MagePos
• Package: mage2kishan/module-mage-pos
• Namespace: Panth\MagePos
• Depends on: Panth_Core (config tab and admin menu parent)

Services in Service/: AuthService, CartService, CatalogService, CheckoutService, CustomerService, DiscountService, HoldService, PosSessionService, PreferenceService, ReceiptService, RefundService, ReportService, SyncService. Repository interfaces for every entity are in Api/.

Quote and credit memo totals: etc/sales.xml adds the pos_discount collector to quote totals (sort order 420) and to credit memo totals (sort order 350).

Payment processors: register implementations of Panth\MagePos\Api\PaymentProcessorInterface in the processors argument of Panth\MagePos\Model\Payment\ProcessorPool via di.xml.

Terminal endpoints

The module has no etc/webapi.xml and no Magento REST or GraphQL endpoints. The terminal calls JSON controllers on the frontend route pos (etc/frontend/routes.xml):

Area	Paths	Method
Auth	pos/auth/login, pos/auth/pin, pos/auth/lock, pos/auth/logout	POST
Auth	pos/auth/state	GET
Cart	pos/cart/create, add, update, remove, clear, coupon, custom, customer, discount, note	POST
Cart	pos/cart/get	GET
Catalog	pos/catalog/search, products, product, options, categories, bestsellers, barcode, quickkeys, snapshot	GET
Catalog	pos/catalog/quickkeySave, pos/catalog/quickkeyRemove	POST
Checkout	pos/checkout/place	POST
Checkout	pos/checkout/receipt	GET
Customer	pos/customer/search (GET), pos/customer/create (POST)
Hold	pos/hold/all (GET), pos/hold/save, restore, remove (POST)
Order	pos/order/search (GET), pos/order/preview, pos/order/refund (POST)
Preference	pos/preference/load (GET), pos/preference/save (POST)
Register	pos/register/all, current, xreport (GET), pos/register/open, close, movement (POST)
Sync	pos/sync/push	POST

Authentication is the POS user stored in the Magento session (panth_pos_user_id), not an admin or customer login. POST endpoints validate the Magento form key. All endpoints except pos/auth/login and pos/auth/state require a logged-in, unlocked POS user (pos/auth/state returns the active registers for the login screen). All endpoints check Enable Module. Role permissions are checked on the server; pos/register/xreport requires can_view_reports.

Carts are scoped to the register of the cashier's open session: a cart created on another register is reported as not found. Refund preview and refund only accept POS orders, and only orders of the current register when a session is open.

Sign-in limits: after 5 failed password logins for a username (or 20 from one IP address) further logins are refused with HTTP 429 and the code too_many_attempts for 15 minutes. After 5 wrong PINs the POS user is signed out and must log in with username and password. The counters are kept in the Magento cache, so flushing the cache resets them.

ACL

Panth_MagePos::manage with children Panth_MagePos::terminal, registers, sessions, users, roles, methods, quickkeys, reports, refund and config. Panth_MagePos::refund is declared but not checked by any admin page; terminal refunds use the role permission can_refund.

Database

Tables: panth_pos_register, panth_pos_role, panth_pos_user, panth_pos_session, panth_pos_cash_movement, panth_pos_payment_method, panth_pos_order, panth_pos_order_payment, panth_pos_hold, panth_pos_quick_key, panth_pos_user_preference. Columns added to quote: panth_pos_discount_type, panth_pos_discount_value, panth_pos_register_id.

Email template: panth_pos_receipt ("POS Receipt").

Unit tests

Tests are in Test/Unit (AuthService, CheckoutService, DiscountService, PosSessionService, ReceiptService, SyncService, ProcessorPool, quote total PosDiscount). From the Magento root:

vendor/bin/phpunit -c dev/tests/unit/phpunit.xml.dist vendor/mage2kishan/module-mage-pos/Test/Unit

The suite runs on PHPUnit 12 (the version required by Magento 2.4.9). Run it from dev/tests/unit if the Allure extension in phpunit.xml.dist reports a missing allure/allure.config.php; that warning comes from the Magento test configuration, not from the module.

Uninstallation

bin/magento module:disable Panth_MagePos
composer remove mage2kishan/module-mage-pos
bin/magento setup:upgrade
bin/magento cache:flush

The module has no uninstall script. The panth_pos_* tables, the three quote columns, the pos-custom-sale product, the panth_pos/* and payment/panth_pos/* config values, and orders placed with the panth_pos payment method remain in the database.

Support

• Product page: kishansavaliya.com/magento-2-pos.html
• Contact: kishansavaliya.com/contact
• Email: [e-mail]
• Issues: github.com/mage2sk/module-mage-pos/issues

Documentation

A cashier guide covering every terminal flow is in USER_GUIDE.md.

License

MIT, as declared in composer.json. See LICENSE in this repository.

Changelog

See CHANGELOG.md.
