dean-ward/craft-pinboard

A flexible Craft CMS field which allows content editors to create and manage interactive images for location maps, product callouts, feature callouts, and more.

5.0.0 2024-07-01 18:33 UTC

Requires

• php: >=8.2
• craftcms/cms: ^5.2.0

Requires (Dev)

• craftcms/ecs: dev-main
• craftcms/phpstan: dev-main

proprietary

README

A flexible Craft CMS fieldtype which allows content editors to create and manage interactive images for location maps, product callouts, feature callouts and more.

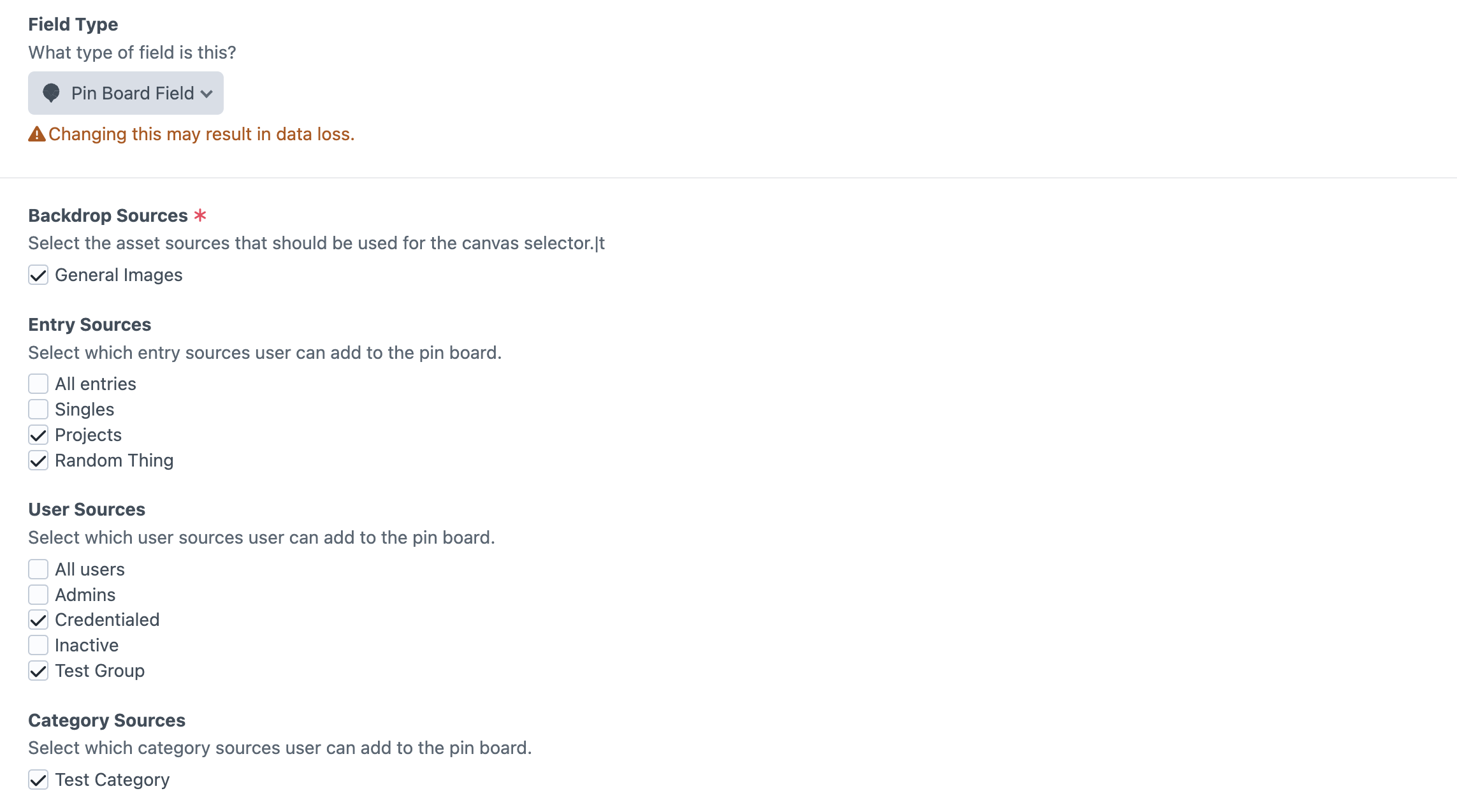

Field configuration screenshot

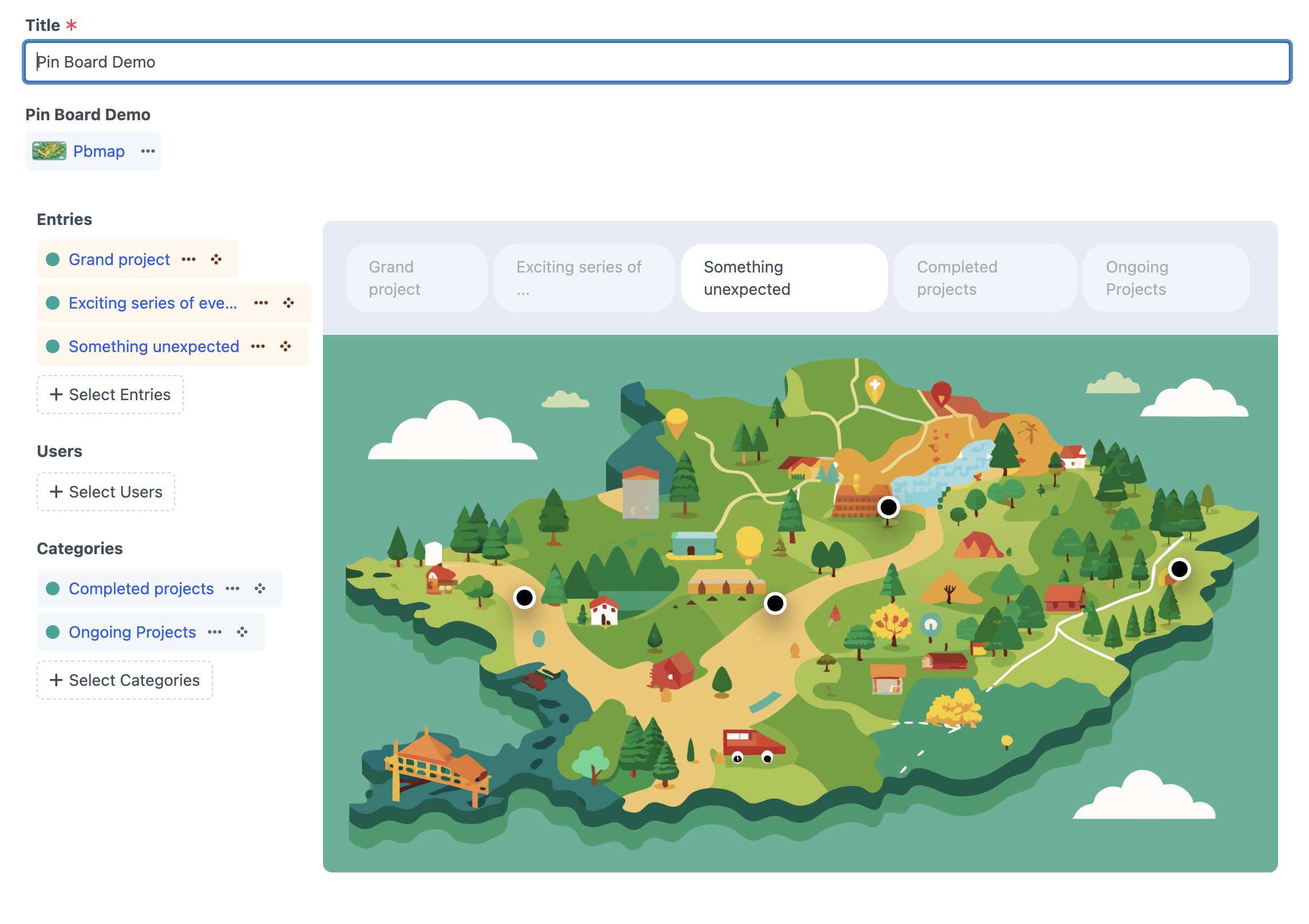

Content editor interface screenshot

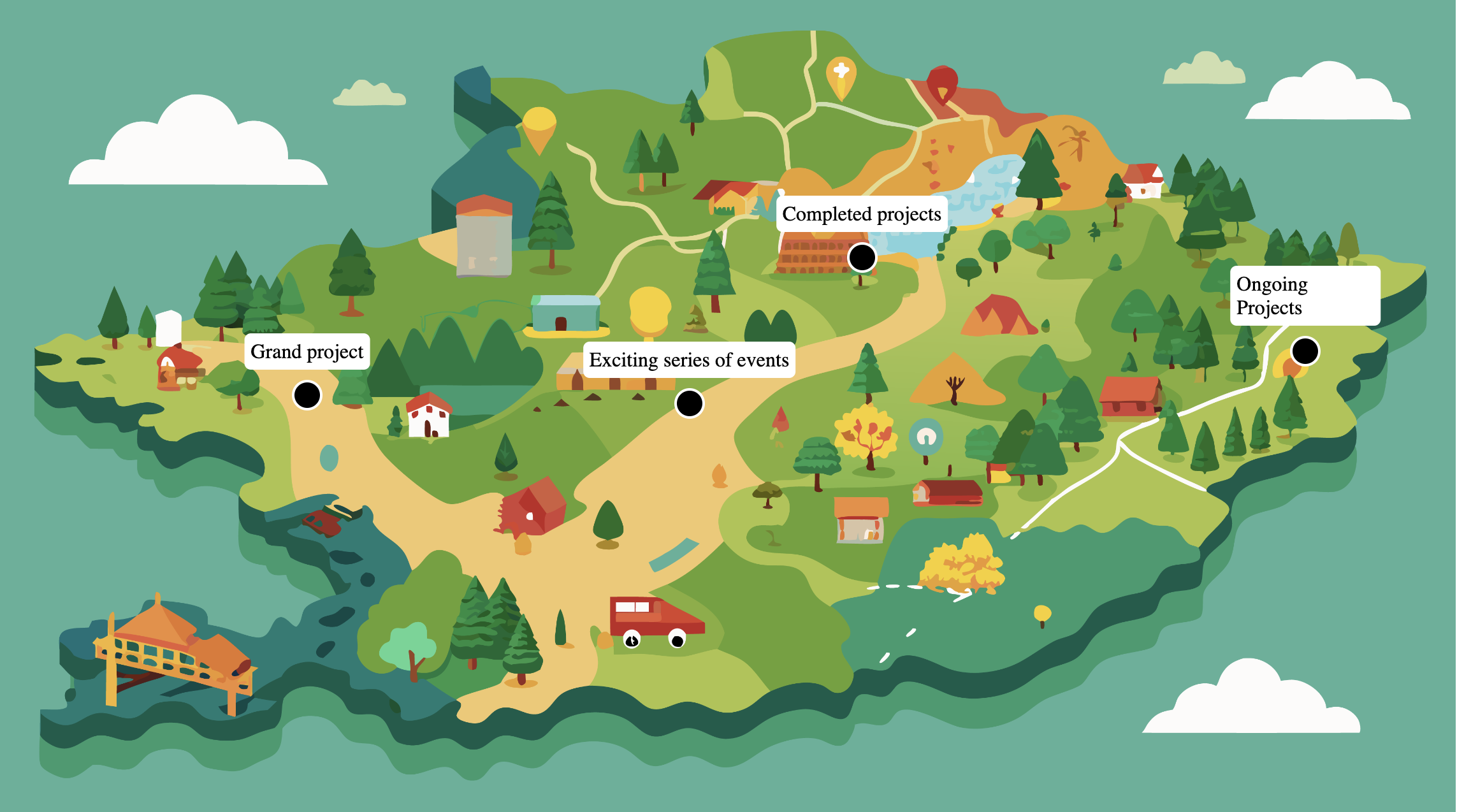

Front end example screenshot

Features

• Create and manage interactive images
• Add multiple pins to an image
• Easy to use drag and drop interface
• Add pins for multiple element types to a single image
• Easily see which elements are pinned and which are not via the pin palette
• Simple to use on the front end

Coming Soon

• Front end javascript helpers to make it even easier to use on the front end
• Front end twig helpers to make it even easier to use on the front end

Example Front End Usage

<div class="backdrop">
	<img src="{{ entry.<pinBoardField>.backdrop.url }}"/>

  {# loop over our pins, setting their top and left CSS attributes to position them #}
  {% for pin in entry.<pinBoardField>.pins %}

		{% set pinStyle = "top:" ~ pin.y ~ "%; left:" ~ pin.x ~ "%; ;transform: translate(-50%, -50%)" %}
		{% set labelStyle = "top:" ~ pin.y ~ "%; left:" ~ pin.x ~ "%; ;transform: translate(-50%, calc(-100% + -20px))" %}

		<div class="pin" style="{{pinStyle}}"></div>
		<div class="pinLabel" style="{{labelStyle}}">
			{{ pin.title }}
		</div>
	{% endfor %}
</div>


<!-- You'll usually place your styles in a seperate file but this works for a demo -->
<style>

	.backdrop {
		width: 80%;
		position: relative;
	}

  {# it is important to set the image with to no more than 100% #}
	.backdrop img {
		width: 100%;
		max-width: 100%;
		height: auto;
	}

	.pin {
		position: absolute;
		width: 20px;
		height: 20px;
		background-color: black;
		border: 2px solid white;
		border-radius: 50%;
	}

	.pinLabel {
		position: absolute;
		background-color: white;
		padding: 5px;
		border-radius: 5px;
	}
</style>
