README

BlockCraft

A FormWidget (blockcraft) that replaces October's native Froala richeditor with a Vue 3 + TipTap block editor - clean HTML or structured JSON output, native Media Manager integration, and stable behavior inside nested Tailor/FormController repeaters.

Why

October's built-in rich text editor ships a pinned, several-major-versions- old Froala build, has limited toolbar customization, and has documented breakage when combined with Tailor repeater fields. BlockCraft is a drop-in-shaped alternative: a real Vue 3 SFC built on TipTap's ProseMirror foundation, with server-side sanitization independent of anything configured in the browser.

Features

Headings, bold/italic/strike, inline code, lists, blockquotes, code blocks, links and horizontal rules.
Tables you can edit: add and delete rows and columns, toggle the header row, merge and split cells, delete the table, and resize columns. The controls appear while the cursor is in a table.
Images from October's Media Manager, editable after inserting: alt text, width, alignment, replace and remove.
HTML source mode for editing the raw markup, still sanitized on save.
Clean HTML or structured TipTap JSON output, sanitized server-side.
Works inside Tailor/FormController repeaters, including rows added after the page loaded.

Requirements

October CMS 4.2+ (needs the Vue 3 / native ESM backend)
PHP 8.2+

Installation

composer require amjadiqbal/blockcraft-plugin

(Composer package name ends in -plugin per October's own naming convention; it still installs at plugins/amjadiqbal/blockcraft.)

No build step is needed - the compiled editor ships in assets/dist/. If you upload the plugin manually (FTP, zip), make sure that folder comes with it.

Usage

# fields.yaml
body:
    label: Body
    type: blockcraft
    outputFormat: html   # or 'json' for a structured TipTap document
    height: 400px

Options

Option	Type	Default	Description
`outputFormat`	`html` \| `json`	`html`	Persisted shape of the field's value.
`height`	string	`400px`	CSS height of the editor's content area.
`buttons`	array \| null	`null` (full default toolbar)	Restrict visible toolbar buttons: `bold`, `italic`, `strike`, `code`, `heading1`..`heading6`, `bulletList`, `orderedList`, `blockquote`, `codeBlock`, `link`, `image`, `table`, `horizontalRule`, `undo`, `redo`, `source`. The table and image bars appear on their own and need no entry.
`readOnly`	bool	`false`	Renders the content non-editable.

outputFormat: json stores TipTap's own document schema ({type: 'doc', content: [...]}) rather than an HTML string - useful when your frontend wants to render content itself instead of trusting stored markup, or when you want a stable structure for programmatic transforms.

Media Manager

Clicking the toolbar's Image button launches October's real, built-in Media Manager (oc.mediaManager.popup) when the current backend user has media.library access - no extra setup needed, no custom AJAX handler on BlockCraft's side. Without that access, the Image button asks for a URL.

Editing tables and images

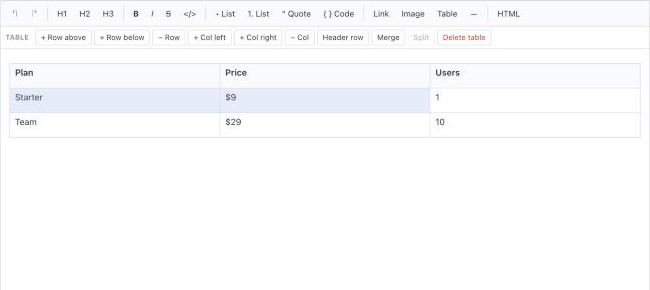

Put the cursor in a table and a Table bar appears under the toolbar: add a row above/below, delete a row, add a column left/right, delete a column, toggle the header row, merge cells (drag across cells to select them first), split a merged cell, and delete the table. Drag a column border to resize it.

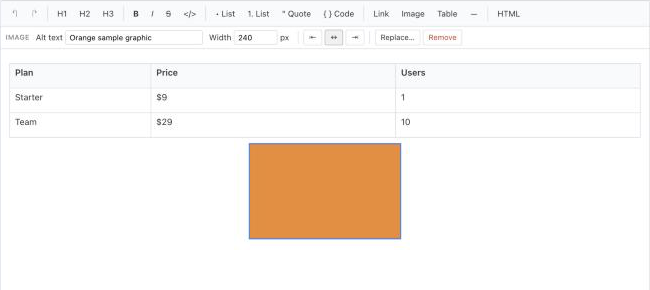

Click an image and an Image bar appears: alt text, width in pixels, align left/center/right, replace it (through the Media Manager), and remove it.

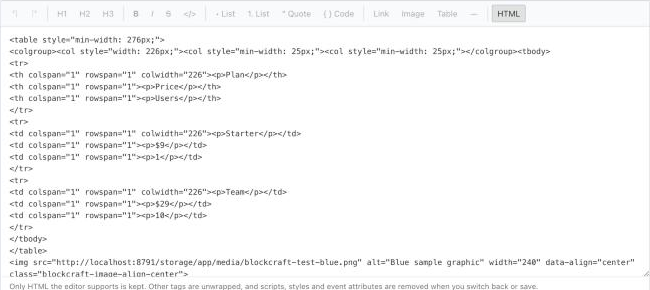

HTML source mode

The HTML toolbar button shows the field's content as HTML, one block per line, for editing by hand. Changes apply as you type and when you switch back. Only HTML the editor supports is kept: unknown tags are unwrapped, and scripts, styles, event attributes, iframes and javascript: links are removed - in the browser, and again on the server when the form is saved (see Sanitization). To hide the button, leave source out of buttons.

Sanitization

Both output modes are sanitized server-side, independent of anything the browser sent - including HTML typed in source mode:

html mode: classes/HtmlSanitizer.php strips any tag/attribute outside an explicit allow-list (matching BlockCraft's own extension set - nothing the editor can't already produce), strips javascript:/data: URIs, and forces rel="noopener noreferrer" on target="_blank" links.
json mode: classes/JsonSanitizer.php validates the decoded value is a well-formed TipTap document and recursively drops any node/mark type or attribute key outside that same allow-list.

Malformed input in either mode degrades to a safe empty value - it never throws and never reaches the database unsanitized.

Repeater lifecycle

BlockCraft's ESM hydrator (assets/js/blockcraft.ts) re-scans the DOM for new mount points on every completed backend AJAX request (ajax:done), so a BlockCraft field added dynamically inside a repeater row - via October's native "Add Item" action - gets its editor initialized correctly, not just one present when the page first loaded.

It also watches for its mount elements being removed from the DOM (a Tailor/FormController repeater row deleted) and destroys the corresponding TipTap/Vue instance via a MutationObserver - this prevents the memory leaks and detached event listeners a naive integration would accumulate as rows are added and removed.

Development

npm install
npm run dev      # Vite dev server with HMR
npm run build    # production bundle -> assets/dist/
npm run typecheck
npm test         # Vitest, mounts the real TipTap editor under jsdom

Testing

The PHPUnit suite (tests/) needs October's own base classes (PluginTestCase, Backend\Classes\FormField/FormWidgetBase) to mean anything, so it must run from inside a real October CMS application with this plugin installed under plugins/amjadiqbal/blockcraft:

composer create-project october/october octoberapp
rsync -a --exclude=node_modules --exclude=assets/dist --exclude=.git \
  ./ octoberapp/plugins/amjadiqbal/blockcraft/
cd octoberapp
php artisan october:migrate
vendor/bin/phpunit --configuration path/to/phpunit.blockcraft.xml

scripts/ci-local.sh does all of this for you, the same way .github/workflows/tests.yml does: a fresh October install, the plugin installed from git archive HEAD (exactly what Packagist ships), PHPUnit, plus the TypeScript/Vite job and a check that the committed assets/dist/ matches a fresh build. It tests the last commit, so commit first.

scripts/ci-local.sh                 # both jobs
JOB=phpunit PHP=php8.2 scripts/ci-local.sh

License

MIT - see LICENSE.md.
